SMT Half Pitch DIP Switches for Space-Critical Applications

SMT Half Pitch DIP Switch
DTCD, DTCJ

• 1.27 mm half pitch for space saving
• 2.2 mm low profile design
• SMD type terminal
• High number of cycles

The DTCD and DTCJ 1.27 mm pitch DIP switches are ultra-miniature SMD components designed for high-density electronic applications. With a low profile height of just 2.2 mm and up to 46% PCB space savings compared to traditional 2.54 mm solutions, they enable significant footprint reduction without compromising functionality.

Available in Gullwing and J-bend terminations, both versions are optimized for automated SMT assembly, reducing manufacturing complexity and cost. The switches support up to 1000 mechanical cycles and operate reliably across a temperature range of -40 °C to +85 °C. Low contact resistance (≤100 mΩ initial) and stable electrical ratings (up to 100 mA @ 50 V) ensure consistent signal performance.

Typical applications include address setting and configuration in industrial controls, communication systems (e.g., RS485/Modbus), server hardware (BIOS/CMOS), consumer appliances, and medical devices. Combining miniaturization, durability, and cost efficiency, DTCD/DTCJ provide a scalable solution for modern compact electronic designs.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

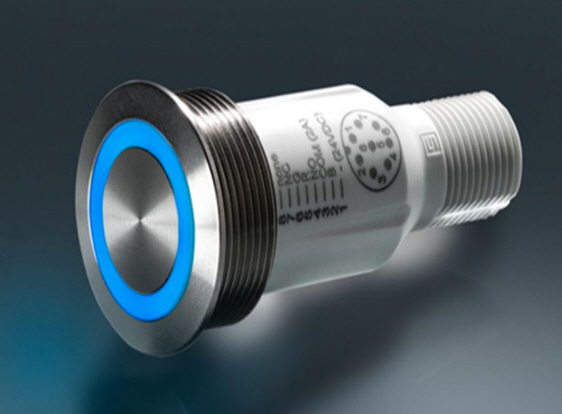

The CML range of push button switches are engineered to deliver enhanced durability, precision performance, and modern design for today’s demanding applications. Perfect for industrial automation, control panels, machinery, or OEM equipment.

• Long mechanical & electrical life
• LED and non-illuminated options
• Available with or without engraving
• Sizes from 8mm up to 32mm
• Stainless steel - Built for harsh environments
• Easy panel mounting
• Compliance with major industry standards
