Industrial Wireless 0-10 Vdc Transmitter

The IWVT Wireless Transmitter is a cost effective alternative to traditional wiring that offers the advantages of a low-cost installation in inaccessible and expensive installation environments.

It is easily paired to any of the range of IWR receivers - thus offering a “plug and play” solution to your analog voltage application.

The IWVT sensor should be used with any of the IWR range of receivers. A line-of-sight range of up to 500 m is possible depending on the wireless receiver used (refer to specific receiver datasheets for further information).

Features:
• 0-10Vdc wireless transmission
• Up to 500 m line-of-site range (depending on receiver)
• Five-year battery life at 10 second transmission update rate
• Simple DIL switch pairing with the single or five channel receiver
• User-selectable transmission update rates
• A range of receivers are available
• Receiver clean contacts provide process alarm functions

Typical Applications Include:
• Simple cable replacement installation – dispense with expensive and tortuous cable runs
• Analog Sensor Status – transmit 0-10Vdc sensor outputs to a remote receiver

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

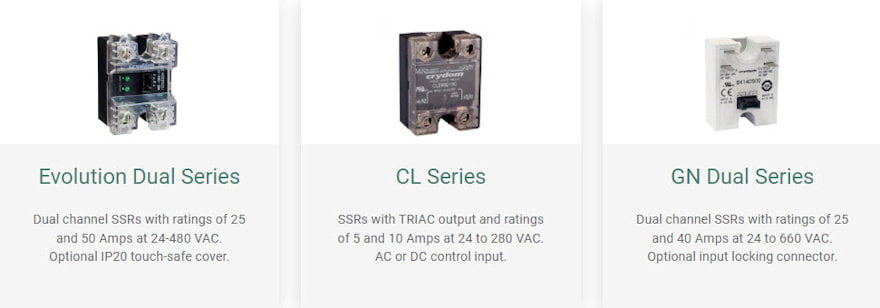

The Evolution Dual family of Panel Mount dual channel AC Solid State Relays is an innovative line which expands upon the classic family of Crydom Dual SSRs, offering an improved mechanical and thermal design along with higher power density. These dual output SSRs are available with ratings of 25 and 50 Amps at 24 to 600 VAC.

Evolution Dual SSRs have 2 outputs controlled by 2 independent DC control inputs, and they are available with different options for input connectors and output terminal configurations, offering great wiring flexibility. A version with an integrated protective cover (IP20) is also available.

Features:
• 4-32 VDC control input
• Zero voltage turn-on outputs
• SCR output for heavy industrial loads
• Input status LED indicator for each channel
• C-UL-US recognized, CE & RoHS compliant

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wireless 4-20 mA Transmitter with Tx Supply

The IWTxT is designed to convert any standard 4-20 mA transmitter into a wireless unit.

It works by switching on a supply to the 4-20 mA transmitter, waiting for a suitable settling time and then sending the data to one of Sensata’s standard wireless receiver units.

The IWTxT is specially designed to maximise battery life and in a typical application the battery life will exceed 12 months. The data update rate is user selectable to suit the requirement of each measured variable and so maximize battery life.

Typical update rates include 1 second, 10 seconds, 60 seconds or 1 hour. The system also features a signal strength reading and time since last transmission which can be remotely monitored.

The IWTxT is designed to operate with the IWR range of receivers. The IWR-1 can output a 4-20 mA or 1-5V signal whilst the IWR-PORT can store up to 128 variables for transmission to an industrial Ethernet connection or an RS-232/485 communications link.

Features:
• Battery powered wireless transmitter
• Supplies excitation voltage to 4-20 mA transmitters
• Long battery life
• Make any transmitter into a wireless transmitter
• Complete thermocouple, RTD, Pressure and Level wireless probes are available

Inputs:
The input types and ranges included below are our standard ones only (Contact Sensata for others).

DC Current & Voltage
• 0-20 mA, 4-20 mA, 0-10 mA into 15/30Ω
• 0-1V, 0-10V, 1-5V into 100kΩ/1MΩ

Any standard 4-20 mA transmitter

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The H1 Series is a family of high voltage panel mounted AC Solid State Relays with ratings from 25 up to 125 Amps at 48 to 660 VAC. Their back-to-back SCR output is ideal for heavy industrlal loads.

Features:
• DC control input
• Low off-state leakage current (snubberless)
• Zero voltage (resistive loads) or instantaneous (inductive loads) turn-on output
• Optional LED input status indicator
• L, CSA and TUV approved and CE compliant to EN 609050-1

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The HA/HD Series Series is a family of panel mounted AC Solid State Relays with ratings from 12 to 125 Amps at 48 to 660 VAC.

Features:
• AC or DC control input
• Zero voltage (resistive loads) or instantaneous (inductive loads) turn-on output
• Optional LED input status indicator
• Optional low input current version
• UL, CSA and TUV approved and CE compliant to EN 609050-1

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wireless to USB Gateway

The IWR-USB Gateway provides a link between wireless sensors and any PC with a USB connection.

A free of charge software package allows monitoring and logging of all the sensors in the wireless network via a standard PC.

The IWR-USB saves the time-stamped data collected in a standard .csv file for easy handling by packages such as Microsoft® Excel®.

Features:
• 2.4GHz Wireless to USB Gateway
• Enables easy monitoring of our wireless networks using any PC
• Free of charge monitoring software allows all wireless parameters to be viewed and logged
• Logs data to .csv file

Multiple battery powered sensors transmit data at programmable intervals to a IWR-USB receiver which can then be connected to a standard PC for monitoring and logging the data from the wireless transmitters.  Data from up to 128 parameters can be accessed via the IWR-USB receiver.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

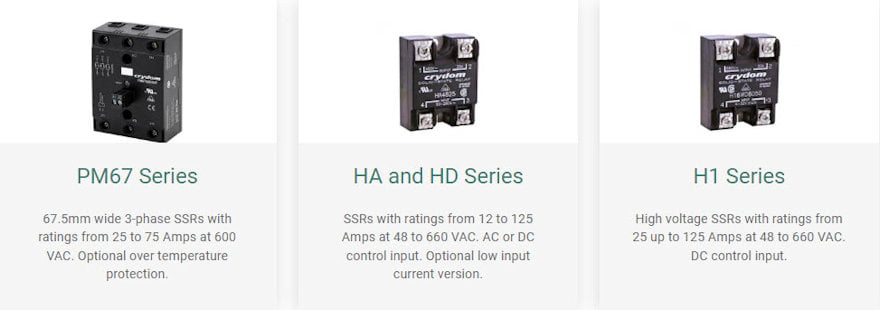

The Nova22 PM67 is a compact 3-phase solid state relay in a panel mountable 67.5mm wide package with output ratings up to 75 Amps per channel @ 40°C. Its built-in overvoltage protection and the optional overtemperature protection make it suitable for demanding heating, motion and lighting applications.

It’s easy to install and its large cage clamp terminals allow connecting wires up to 2 AWG size on the output terminals without the use of any additional accessories, therefore reducing installation cost and time.

UL approved and VDE certified, the PM67 is a powerful and versatile solid state relay with superior performance when compared to previous generations and competitor products.

Features:
• Output ratings up to 75 Amps at 600 VAC
• 2 & 3 controlled Legs option
• Over Temperature protection w/alarm (optional)
• Built-in overvoltage protection
• Clamp Cage terminal type accepts up to 2 AWG wire size.
• Layout of mounting holes compatible with standard hockey puck SSRs
• IP20 touch-safe housing
• AC or DC control
• C-UL-US recognized and VDE approved

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wireless to Ethernet or RS-232/485 Gateway

The IWR-PORT Ethernet Gateway provides a link between wireless sensors and sensor networks and Industrial Ethernet or RS-232/485 networks.

This allows Sensata wireless transmitters to be incorporated into new or existing Industrial Ethernet or RS-232/485 data monitoring and control networks.

The IWR-PORT can interface with standard 10/100Base-T Ethernet networks giving access to the standard MODBUS TCP protocol, ensuring compatibility with most industrial automation systems. MODBUS RTU is available when an RS-232/485 network is used.

Features:
• 2.4GHz Wireless to Comms Gateway
• Enables easy add-on of wireless networks to existing Ethernet or RS-232/485 systems
• Allows remote sensors to be incorporated into an Ethernet or RS-232/485 network without the need for expensive cabling
• Optional analog & digital outputs can be obtained using SCISOSLICE modules

Multiple battery powered sensors transmit data at programmable intervals to an IWR-PORT receiver which can transfer the data onto an Ethernet or RS-232/485 network.

Data from up to 128 nodes can be stored on one IWR-PORT module and up to 16 networks can co-exist together. All parameters are stored as Modbus registers.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Nova22 PM22 Series is a family of 22.5mm wide panel mount Solid State Relays that offer the highest power density in the market with ratings up to 95 Amps at 600 VAC. PM22s have a contactor terminal configuration which includes a plug-in connector for the control input, available in either standard “screw” or “spring cage” terminals.

PM22 Series models are C-UL-US and TUV approved.

Features:
• Built-in overvoltage protection
• DBC substrate for superior thermal performance
• IP20 touch-safe housing
• AC or DC control
• Zero voltage or instantaneous turn-on output
• 4000 VAC optical isolation

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

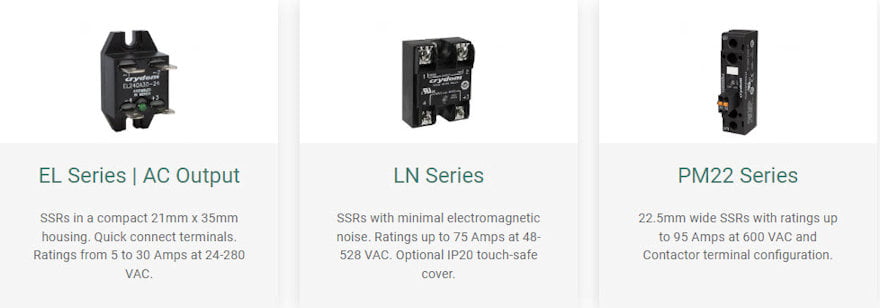

EL Series AC output solid state relays come in a compact, 21mm x 35mm housing and offer ratings up to 30 Amps. These compact SSRs come with a pre-installed thermal pad, input LED status indicator, optional built-in overvoltage protection, and are C-UL-US and TUV certified and CE compliant.

The EL Series mechanical design includes quick connect terminals and an innovative 90° bent terminals option ideal for applications with limited vertical space.

Additional Features of the EL Series Panel Mount AC SSRs Include:
• Load current ratings from 5 to 30 Amps @ 24-280 VAC
• Back-to-back SCR output with low off state leakage current
• Flexible 5, 12 and 24 VDC control voltage options
• Zero voltage or instantaneous turn-on outputs
• Plastic housing with min. 250 CTI rating (PLC2) for demanding applications
