Honeywell is pleased to announce an upgrade to the Micro Switch SZL-VL Series Limit Switch effective May 2017.

The new product features include the addition of positive opening contacts (side rotary version only), enhanced sealing level to IP67; NEMA 1, 12, 13, extended the temperature range, and added CCC certification.

The upgraded design includes modified seals, housing and a new design cable gland to improve seal performance. The housing design and mounting hole pattern remain the same. Any dimensional changes do not exceed more than 1mm.

These product enhancements will allow the potential for use in wide variety of applications as well as bring more value to our customers.

The upgrades to the SZL-VL Series require that we introduce new part numbers and obsolete the existing SZL-VL part numbers.

Value to Customers
Honeywell Micro Switch SZL-VL-S Series Miniature Limit Switches have user-friendly interfaces and may be used in a broad range of applications to help meet the challenges of many industrial environments. A variety of actuators fit on the same platform reducing the need to use various kinds of mounting hardware.

With robust environmental ratings, the SZL-VL-S is protected for all kinds of industrial applications. IP67 indicates that the SZL-VL-S is protected against the effect of immersion in water between 15 cm and 1 m. The competition standard is IP65 which can only withstand low pressure spray and jets of water. The electrical rating of 10 A permits the SZL-VL-S switch to be used with heavier electrical loads than competitors.

Key Features
* Approvals: CCC, CE, cULus
* Sealed to IP67, NEMA 1, 12, 13
* Snap-action contacts
* Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover
* Stainless steel levers with either steel and nylon rollers
* Variety of actuators
* Positive-opening contacts (plunger version only)
* RoHS compliant
* Utilization category:
>AC-15 A300 (380 Vac/0.5 A)
>DC-13 Q300 (220 Vdc/0.05 A)
* Mechanical life rating: 10 million cycles
* Electrical life rating: 0.5 million cycles

Potential Applications
* Commercial appliances
* Exhaust and fume hood door monitoring
* Lift mechanisms inside high-density parking garages
* Logistic facilities
* Machine electrical interlock
* Machine position sensing
* Ramp up and down position monitoring
* Scissor and man lifts
* Vending machines

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH™ NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications.

VALUE TO CUSTOMERS
• Cost-effective: Provides a single source for a compact SPDT and DPDT limit switch, which can help minimize the Original Equipment Manufacturer’s sourcing expenses by simplifying their supply chain
• Versatile: Durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence
• Configurable: Allows design engineers to standardize on a single footprint while meeting a variety of electrical requirements
• Application support: Customers with a global footprint can count on Honeywell for regional support for new applications and troubleshooting
• With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability
• Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task

FEATURES
• SPDT or DPDT configurable circuitry
• Snap-action, positive-break contacts
• Elgiloy Hastelloy/Silver alloy and gold plated contact options
• UL, CE, cUL, and CCC approvals
• NEMA 1, 4, 12, 13; IP67 sealing
• Metal and plastic housing options
• Cable and connector terminations
• Variety of heads and actuator levers

POTENTIAL INDUSTRIAL APPLICATIONS
• Boom position detection
• Elevators and escalators
• Machine tools
• Mobile light towers
• Packaging equipment
• Rail doors
• Scissor lifts

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

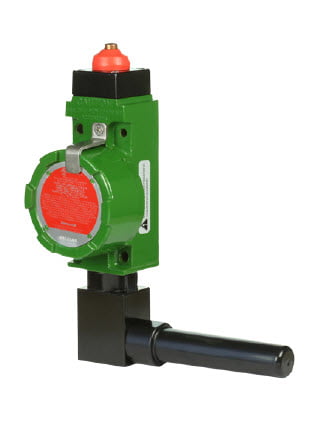

Honeywell’s Limitless™ WBX Series combines the best of Honeywell’s MICRO SWITCH™ Heavy Duty limit switches with a point-to-point (P2P) network. It has a variety of remote or built-in antenna options. Wireless-enabled limit switches can be used for position sensing and presence/absence detection for an endless number of applications.

The WBX Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically possible or economically feasible. Combining this greater flexibility with proven harsh-duty packaging can result in increased efficiencies and improved safety for machines, equipment, and operators.

Customers with a global footprint can utilize local Honeywell experts for application and solution support.

VALUE TO CUSTOMER
• Enables control in remote parts of application/machinery/manufacturing plants, where wiring is not possible or feasible
• Ability to reconfigure and network multiple interfaces, or point-to-point with personalized addresses which allows for adding, subtracting, or relocating Limitless™ inputs easily
• Can reduce installation/maintenance costs with no wiring to Limitless™ switches, conduit, strain relief, clips, connectors, junction boxes, etc.
• Wireless operation and signal transmission eliminates the need to physically send maintenance engineers into the field thus reducing installation and operating costs
• Provides an independent layer of protection for equipment, by giving an immediate indication that a remote mechanical device is not positioned or moving correctly
• Batteries are inexpensive, readily available worldwide, and easy to replace. No re-provisioning is required after a battery replacement
• Batteries are readily available and easy to replace

FEATURES
• Radio (license-free and global) WPAN 802.15.4, 2.4 GHz, point-to-point (P2P); up to 305 m [1000 ft] line-of-sight communication range when used with a Limitless™ WPMM Series wireless monitor, WDRR Series receiver module, or WMPR receiver module (sold separately).
• License-free RF wireless protocol standards (IEEE 802.15.4)
• Hazardous location approvals: IP67 (self certified), NEMA 4 sealed metal enclosure
• Able to reconfigure multiple WBX Series switches
• Batteries readily available from electrical supply houses and distributors
• Global use

POTENTIAL APPLICATIONS
Industrial
• Agriculture machines
• Door position
• Grain diverters or flaps
• Hose attachment verification
• Material handling
• Paint robotics
• Pipeline pigs
• Pump stroke count
• Remote or temporary equipment
• Safety shower alarming
• Valve position

Transportation
• Agriculture machines

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

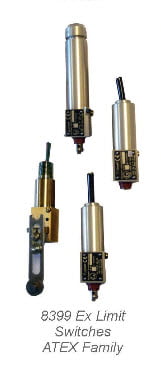

Crouzet Switches Limit Switches Detect Valve position in ATEX / IECEX Zones

Compliant in Complex Industrial Processes
- Chemical
- Petrochemical
- Oil services

Features
- Various actuation accessories
- Adjustable angle levers and special heads
- IP67
- Operating temperature range -40°F to 392°F (-40°C to 200°C)

Applications
- Valves and actuators
- Cranes, hoists and gates
- HVAC, generators and safety guards

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Enables Control and Notification in Remote Parts of Plants Where Wiring is Too Costly or Not Possible

Honeywell announces the release of the new Limitless™ Wireless Operator Interface, WOI Series, which expands Honeywell’s Limitless™ wireless switch and receiver portfolio by providing a packaged pushbutton controller for manufacturers and OEMs. The WOI Series adds a human interface device to the product-driven interfaces of the Limitless™ portfolio. With both momentary and maintained contact options, the Limitless™ Series now offers wireless control from both person and position.

Honeywell’s Wireless Operator Interface is a controller designed to wirelessly turn on and off equipment (pumps, motors, drives, conveyors, and other industrial equipment), open or close gates/doors, or provide notification to remote locations. The WOI Series can be used in rugged industrial environments to notify appropriate departments when there are quality, machine, material out-of-stock, or other manufacturing issues.

“The WOI Series provides a control option for users looking to avoid the wiring costs, maintenance issues, hazards, time and engineering that comes with a ‘wired’ push button,” said Joseph Citrano, senior global product marketing manager, Sensing and Control. “This new device expands Honeywell’s Limitless™ wireless portfolio that includes monitors, din-rail receivers, global limit switches, and heavy-duty limit switches.”

Designed for flexibility, the user can choose and install a desired operator (22 mm rotary switch, key switch, key) or utilize one of Honeywell’s pushbuttons. It communicates through Limitless™ receivers that provide PLC inputs or relay outputs connected directly to equipment to turn on LEDs or start/stop industrial equipment.

The Limitless™ wireless network is an easy and cost-effective solution for those looking for a reliable wireless solution. It includes the WDRR Din-rail receiver, WPMM monitor, WLS heavy-duty limit switch, and WGLA global limit switch. The entire Limitless™ solution utilizes the global, license-free RF wireless 802.15.4 WPAN protocol that provides up to a 305 m [1000 ft] line-of-sight communication range, and prolongs battery life with advanced power management technology.

The Limitless™ WOI Series potentially could be used in industrial applications such as CNC action, conveyors, door and gate action, lifts, material handling, motor drives, presses, pumps, quality control buttons, specialty machines, stop/start machinery, stop/start production, and valve action. Potential transportation applications include agricultural equipment and movable machinery.

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Honeywell V15W is a standard-sized basic switch designed for harsh-duty, wash down areas. Rugged yet precise, the series provides machine control for turning circuits on and off. The V15W can be used in a wide range of challenging environments, including food packaging plants, forklifts, atvs, golf cars, lawn mowers, garbage trucks, salt trucks, commercial buses, forklifts and wheelchair lifts for conversion vans. Choose the V15W when you need accurate repeatability in a compact, light weight and long lasting basic switch.

V15W Watertight Series:  Watertight switch in a V-size package. Watertight to an IP67 rating (switch body only). The V15W is designed for applications requiring >15 g operating force and electrical ratings from 0.1 A to 10 A.

- Rugged yet precise, the V15W product performance matches customer design expectations for compactness, accurate repeatability and extended life, giving them flexibility in a wide range of washdown applications
- For design engineering flexibility, the VW15 Series features a variety of straight, roller, simulated roller, and special actuators to choose from (connectors on lead wires also available)
- Many switch characteristics, are available to create thousands of different potential configurations
- Designed specifically for challenging outdoor applications, the V15W gives repeatable and consistent performance within a range of conditions
- Able to operate under difficult environmental conditions, the V15W Series is designed to work in watertight or sealed applications requiring ≥15g of operating force
- Rated to IP67 (except terminal parts)
- The only V-sized switch rated up to 10A!  The higher rating allows the V15W to be used in a wider range of high current consumer and industrial applications

The V15W Series is the standard miniature snap-action switch in Honeywell's Micro Switch portfolio of products that also includes standard Z, and premium Large, V, and S Series. The Honeywell V15W Watertight Series switches are often chosen due to their small size and sealing options when customers need to sense presence or absence in a compact package with accurate repeatability and extended life, at a great value.

KEY FEATURES AND BENEFITS
* Broad range of electrical loads
* Straight, roller, simulated roller, and special actuators
* Special terminations available upon request
* Wide temperature range
* Global approvals (UL, cUL, ENEC, CQC)

POTENTIAL APPLICATIONS
For use in applications where a pre-wired sealed on/off switch is required.

* ATV and Off-road Vehicles:  Brake light assemblies, brake position detection, handle bar controls, run-away prevention, shift lever position (golf carts), marine controls
* Construction and Agriculture:  Joystick controls, pushbuttons, seat position detection (lawn and turf), pedal position detection, run-away prevention, lighting controls, PTO position detection, position detection on attachments, position detection on hydraulic systems (wake-up)
* Industrial:  Washdown factory floor, factory machinery, pressure/temp/flow switches, motor-controls (on/off, auto-stop), ice makers, valve position
* Medical Equipment:  Hospital bed controls, dental chairs, foot-pedals, pneumatic switches

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Obsolete Saia-Burgess Parts

Although Saia-Burgess has discontinued the manufacture of the popular part M3BRMA there continues to be regular on-going demand for this switch from varied industries and applications.

Contact E. Preston Electrical to receive information about the alternative offered for this obsolete part.  Equivalent part for M3BRMA is now available with virtually the same form, fit, function and quality that will make this part available long into the future.

What about other Saia-Burgess obsolete parts.  We also offer direct alternatives to old parts such as M3BRML, 4CRQ, 4CR7, 4CRQR2, CB, CBL, CQR2, CR Series, CT Series & PN4 Series.

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

.

.

.

.

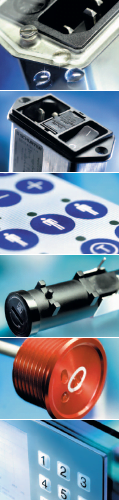

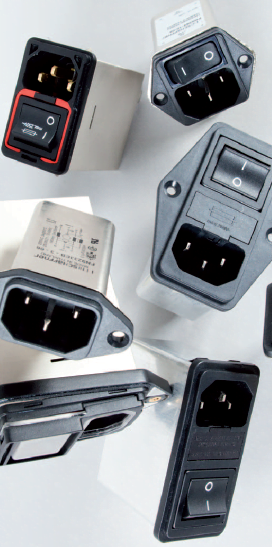

Honeywell Sensing and Control, Schaffner & Schurter

Three big names for medical applications provides medical OEMs and designers with a broad suite of high performance and reliable Sensors, Switches, Filters,  IEC Inlet Filters, Power Entry Modules, Connectors, Circuit Breakers, Fuse Holders, Chokes and Touch Panels used in hundreds of medical applications.  Doctors and patients must trust that the medical products they use will perform safely, reliably and effectively.  These manufacturers understand the needs of the medical industry and work closely with medical companies to provide the right products for each application. The combination of product leadership, application expertise and stable delivery make these three expert manufacturers the natural choice when choosing the right electrical requirements for your medical applications.   E Preston Electrical is a franchised distributor for each of these manufacturers offering long term support for your future needs.

.

.

Honeywell Sensing and Control, Schaffner & Schurter

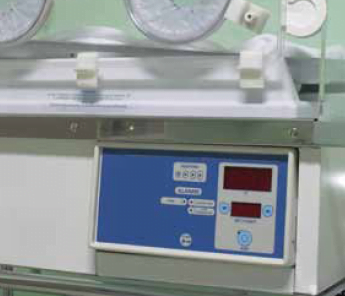

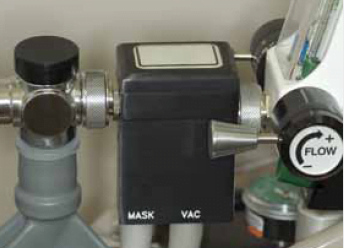

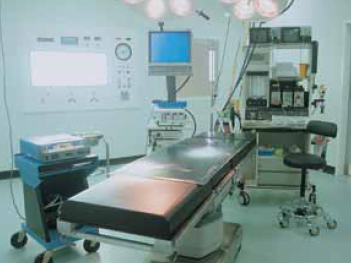

Whatever the application:  Infusion Pumps, Respiratory Machines, Anesthesia Machines, Ventilators, Dialysis Machines, Oxygen Concentrators, Diagnostics Appliances; not to mention the many variety of devices required for Therapy, Monitoring or Laboratory applications - all requiring reliable high standard products these manufacturers offer within the medical industry.

Honeywell, Schaffner and Schurter products are ideal for use in medical appliances, meeting all the typical requirements such as durability, reliability, safety orientation and design ensuring hygiene as well as user-friendliness and maximum functional integration.

Honeywell, Schaffner and Schurter supports medical equipment manufacturers worldwide, through technically sophisticated and well-engineered products, in their development work. That is why they consistently align innovation process with the technological trends of this cutting-edge industry.

  HONEYWELL                                   SCHAFFNER                                        SCHURTER

     Medical Applications                      Medical Applications                       Medical Applications

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Honeywell Z Series standard subminiatures are designed for repeatability and enhanced product life. The MICRO SWITCH™ Z Series combines small size and light weight with ample electrical capacity, low cost, and enhanced life. The MICRO SWITCH™ Z Series consists of six product families with unique features that can drop right into an application.

These reliable and rugged switches offer a variety of actuators, terminations, circuitry configurations, electrical ratings, contact materials, operating characteristics, and sealing allows them to be utilized in numerous potential applications. Carefully manufactured and thoroughly inspected, the MICRO SWITCH™ Z Series standard subminiatures are a great value for applications requiring sensing presence or absence of an object.

FEATURES
* Small size and light weight switches lend themselves to numerous potential applications
* Choice of low energy or power-duty electrical ratings allow the switch to be specified in more types of applications
* Broad range of amp ratings (from 0.1 A to 10.1 A)
* Watertight IP67 sealing available on some listings allows the switch to be used where sealing and presence/absence detection is required
* UL/CSA, cUL, ENEC, and CE approvals

POTENTIAL APPLICATIONS

Industrial: Appliances, communication equipment, computers, electromechanical timers, mechanical cam assemblies (timers), office equipment, electric tools, HVAC wall controls, instrumentation, valves, vending machines

Transportation: Automotive, truck, and boat wire harnesses; sub-assemblies for convertible roofs; lock modules for tail-gate/trunk; tank and hood latch detection

Medical: Medical and hospital beds, foot pedal controls, and chair lifts

Applications where a pre-wired sealed on/off switch is required

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Best Switches Come In Small Packages

Leading designer and manufacturer of switches, sensors and controls, ZF Electronics, has launched a new series of sub subminiature switches which suit applications as diverse as automotive door latches, industrial locking systems, outdoor equipment and hand-held control units.  Demands on electronic components for increased reliability and functionality increase year on year, together with the need to achieve higher specifications within ever-shrinking housing sizes.  The new DK sub subminiature series from ZF Electronics provides the smallest dimensions and highest performance for a snap switch in its class.

DK switches are less than 15mm in length and are sealed to IP6K5 (IP6K7 on request) for use in wet or dusty environments. With temperature ratings of up to 105degC, they are extremely reliable, with a long mechanical life of over 500,000 actuations. Additional actuators are available in a choice of either simulated roller or plain stainless steel and can be operated vertically or via customised actuators.  DK switches offer long over-travel features (1.3mm minimum) and have a variety of connection possibilities with solder, PCB terminals or pre-wired options all available.

Standard DK sub subminiature switches are designed for use on low-voltage DC circuits - nominal current rating is 5mA up to 2A. Non-standard versions are also available for circuits up to 60VDC, for example for use in battery-powered equipment.  Very low voltage applications are also possible, such as the switching of thermo-couples.  Contact configuration is single pole, dual throw (SPDT) with the benefit of AuAg crosspoint contacts for high contact stability. DK series switches can also be ganged for multiple use.

.
