ABB has launched a range of miniature circuit breakers (MCBs) aimed at OEMs, panelbuilders and the industrial sector. The System pro M compact® incorporates a number of new features designed to eliminate wiring connection errors.

A key feature is the positioning of the cabling terminal in front of the busbar connection terminal, making both terminals easier to access and see. By placing both terminal ports at the bottom of the MCB, connections can be made secure by using only one screw to fasten both the busbar connection and the electrical cabling into their respective terminals.

ABB has also introduced auxiliary contacts for the pro M compact® range, which can be added to the bottom of an MCB instead of the side. Saving up to 50% space in enclosures, this feature increases the number of auxiliary contacts which can be installed, expanding the number of remote monitoring options. Plug-in connectivity also makes the contacts simple to connect.

The pro M compact® MCBs also offer a reduced height compared to ABB’s previous range, saving around 2cm of space per MCB. This provides additional installation space for when space is at a premium.

ABB’s patented release system enables easy removal without the need for a screwdriver. Release connectors on the back of the devices allow them to be simply disconnected from the busbar after turning power off and disconnecting the wiring.

The pro M compact® range is suitable for use worldwide as the materials used to manufacture them exceed standards for both European regulations for RoHs and UL, the US directive for electrical components. The pro M compact® MCBs can be ordered ready for installation for both Europe and the US. A Europe-only version is also available.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

CA40 up to CA63 - robust and reliable!

Economic criteria are placing enormous pressure on you to optimize the reliability and safety without increasing size and weight of your product, but even decreasing it. The cam switches CA40 - CA63 satisfy the above described criteria.

Facts & Figures :
• IP 20 terminals, finger - prove tunnel - type terminals
• Robust and oversized switch terminals
• Captive terminals screws
• Compact design
• Higher switching capacity according to AC-23A
• One frame size covers current range from 40 - 63 Ampere

A large number of optional extras is available for this new switch type

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

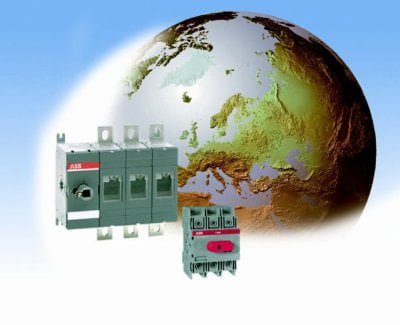

ABB has extended its compact range of switches as part of its on-going replacement program for the OETL and OESA ranges. Up to 48% smaller in size, the OS and OT switches are ideal for applications where time, cost and space are at a premium.

ABB's OT switch disconnectors and OS fuse switch-disconnectors can be used as the main switch in low voltage switchgear for power distribution, starting and stopping of motors and isolating loads during maintenance. Available in metal or plastic enclosures, they can be used as safety switches to prevent accidental starting of machines. As further protection, the external operating handles have been double-insulated, which eliminates the chance of touching live parts. The fuse covers also cannot be opened when the switch fuse is on.

The reduced size of both OT and OS switches means that almost double the number of panels can be fitted onto a board that is approximately 1.3m x 2.3m, compared to their OETL and OESA range equivalents. This is ideal for installations where space is limited or at a premium.

Both OT and OS switches can be installed vertically or horizontally, enabling users to position them according to the location of the incoming supply. They are fully rated for both enclosed and open environments, negating the need for extra space if the switches are being used in an enclosure.

The OT range is available from 16A up to 800A. The OS range provides coverage from 16A, up to 400A, with the OESA continuing to provide up to 800A.

Both the OT and OS switches feature a mechanically-based design, with metal parts and double brake switching as standard. These features help to prolong the operational life of the products compared to units from other manufacturers which typically use plastic and ceramic parts. It also increases safety by providing double isolation from live parts. Further safety is provided by arc-chutes, which prevent current sparks and flashovers.

The OT range is IP20 protected, providing extensive protection against impacts from small objects such as debris being expelled by a nearby machine. It also has a patented operator independent quick-make / quick-break mechanism, providing better responsiveness and reliability when in use.

With the neutral wrapped around the main switch mechanism combining to make one unit, the OT and OS switches save space, as opposed to separate space being required for the neutral connection outside of the switch.

Two-pole or one pole versions of the switches can be produced on request. The OT and OS ranges are modular in design, providing increased flexibility on installation. Adjustable mounting feet allow the feet to be fitted at 45 or 90 degree angles.

The switches are suitable for a number of applications, ranging from motor control centres to acting as a main switch in machine applications. OT and OS switches are commonly used by water authorities, transport rail networks and in offshore applications.

ABB have also introduced change-over switches to their OT range. Available from 160A up to 800A, the change-over switches are two switches in one, and increase the ways in which the switches can be applied. It also reduces the need for separate change-over mechanisms.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

E. Preston Electrical's association with ABB dates back to the start of the company in 1980 when the Stromberg product range helped to develop sales for low voltage electrical components.

This continues today with the new OS and OT Switchgear options which compliment the existing Switch Fuse and Isolator ranges from ABB showing their commitment and desire to maintain their position on the world marketplace for switchgear products.
