AC and DC versions; suits industrial, commercial, machine tools, security,
power supplies and HVAC applications

Hylec-APL, the specialist supplier of electrical components and enclosures, is launching a new range of isolation switch boxes.  The new range boasts the best price / performance ratio on the UK market, providing fast electrical isolation for multiple applications, including industrial machinery, commercial buildings, power supplies, security equipment and HVAC.  Isolator AC and DC models are IP67 rated, completely preventing dust and dirt ingress and providing protection from water up to a depth of 1m.  In addition, Isolator switch boxes are manufactured from completely flame retardant polycarbonate rated to UL94V-0, providing an additional and often vital margin of safety over competitive products with a lower flame-resistance rating.

The Isolator AC models are 20A, 25A, 32A, 40A and 63A, with rated operating current for AC-23A circuits of 15A, 20A, 22A, 30A and 43A respectively.  For 3-phase AC installations, rated voltage is 11A, 13A, 15A, 22A and 36A. An 80A AC ISOLATOR switch box will be introduced in early 2017. The three DC Isolator models are 16A, 25A and 32A, with rated insulation voltage of 1500V and rated impulse withstand voltage of 8000V.  Contacts are silver plated alloy which provide superior oxidisation resistance and increased reliability. At just 98mm x 80mm x 145mm, the 20A, 32A, and 40A AC models are very compact, yet highly visible with bright yellow covers and red switches for easy identification.   The larger 63A AC and DC models measure just 98mm wide x 81mm high x 180mm long, again providing a neat, compact solution in all commercial and industrial environments. The Isolator range has TUV approval, and UL approval is applied for.   All sizes are available in 4-pole versions.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

No tools required - wire up fast to save time on site.  Suits stranded and solid cables;
max current 32A, 450V

Hylec-APL, the specialist supplier of electrical components and enclosures, is introducing the new HYLK Kwik Lever connector.  The HYLK Kwik Lever range features a lever-spring action clamp and can be used with both stranded and solid cables with a maximum conductor size of 4mm, (AWG minimum 24, maximum 12), enabling professional installers to make really fast, simple and secure connections in seconds. There are no fiddly screws to tighten, the cable insulation is simply stripped to length, inserted into the Kwik Lever connector and once the spring lever is flipped, wires are securely and safely retained with even and constant pressure and no damage to the wire.  HYLK Kwik Lever connectors are reliable, competitively-priced and completely re-useable.  Suitable uses for the Kwik Lever range include lighting, power, heating & ventilation, and inside junction boxes.

The design of the Kwik Lever connector housing makes it easy to see that connections are in place correctly, while the levers overlap the end of the housing slightly for comfortable fingertip operation.  Checking the electrical connections is also quick and simple, as the connector housings have easily accessible testing points.   There are 2, 3 and 5-way single pole models in the HYLK Kwik Lever range to take 2, 3, 4, or 5 individual wires. These compact connectors measure only 9mm high x 18mm wide, and  12.4mm,  18.2mm,  or 24mm long depending on model, so are ideal for applications where space is constrained.   They are rated to 32A, maximum voltage 450V. The Kwik Lever range is CE and RoHS compliant and TUV, UL and cUL approved.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

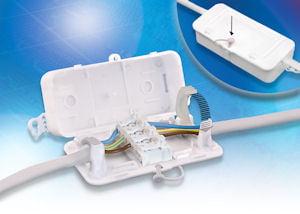

Hylec-APL launches its new DEBOX junction box. The virtually tool-less design facilitates installation faster than the leading competitor and offers greater flexibility. For use in internal applications in a variety of different industries, but especially in the lighting sector, it will reduce time on-site and in turn reduce the overall costs of installation.

The DEBOX features:
•   4 Pole, 24 amp, 4mm terminal block supplied as standard.
•   Can be used with screwless terminals, Kwik-Wire commoning terminals or IDC connectors
•   Can accommodate flat or round profile cables
•   Polypropylene UL 94 V2 material
•   Fixing pin clips the lid in place quickly and effectively
•   Two mounting ears for secure external fastening
•   Virtually tool-less assembly

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Hylec-APL’s IP65 door enclosures are designed to simplify installation and guarantee years of trouble free operation. Unlike many competitor products on the market which charge extra for accessories, the Hylec-APL range is supplied with a galvanised steel back plate, external mounting brackets and a lock and key as standard.

• IP65 protection on all models
• Hinged doors in blank or transparent design
• Quarter turn lock and key supplied as standard
• Flame retardant ABS provides impact resistance of IK08
• Galvanised steel backplate provides easy mounting
• Supplied complete with external mounting brackets and assembly screws

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Hylec-APL venting elements are the ideal accessory for preventing the build-up of condensation in vital electrical enclosures and improving their protection against water ingress. The breathable membrane is installed in applications where temperatures may vary and allows the internal air pressures to equalise without drawing in any moisture from the air.

• Easy to install on any standard enclosure design
• Available with IP66, IP67 and IP69K protection
• M12 thread in black or grey colours
• Typical flow rate 90-130ml/min/cm2 at Ap=0.01 bar

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

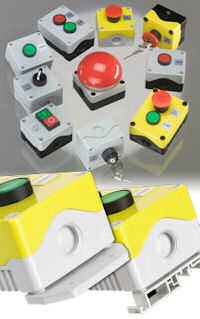

Hylec-APL now offers the DE01 range of pre-installed control stations which combine tough IP67 enclosures with hard wearing push button and selector switches reducing time spent on-site. Installation is further aided thanks to unique, snap-on brackets for easy wall, chassis and DIN mounting.

*  Variety of sizes and depths to accommodate different application requirements
*  Thick walls constructed from robust ABS material
*  Up to IP67 protection depending on switch options
*  Snap-on bracket mounting available for DIN rail or chassis / wall mounting
*  Selection of push button and selector switch types and combinations are available
*  Suitable for indoor and outdoor use in domestic, commercial and industrial applications
*  All products comply fully with ROHS and REACH standards

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Hylec-APL range of thick walled, ABS door enclosures offers end-users a rugged IP65 electrical/electronic equipment housing solution for outdoor applications, including marine environments. The enclosures are constructed from a flame retardant material and include a galvanised steel back plate. External brackets are included for quick mounting to walls and surfaces without compromising the enclosures ingress protection levels.

*  Ingress protection rating IP65 and impact resistance rating IK08
*  Manufactured from UL approved Flame retardant ABS-HB
*  Range of 8 different sizes
*  Opaque or transparent doors available
*  Door locks and keys as standard
*  Unique galvanised steel back mounting plate for easy equipment installation into enclosure

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Kwik Fix cable gland from Hylec-APL has been designed to offer installers speedy installation for applications where access to the interior of a bulkhead or enclosure is restricted. The gland, which is especially suited to switch cabinets and cooling and heating systems, can be used to form a quick, easy IP68 cable transit.

Easy Installation Process
*  No separate locknut required
*  Assembly from one side only
*  Available in M16/20/25
*  Polyamide PA6 V2 Black and Grey
*  IP68 protection
*  Applies to Hylec cable gland series K341

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

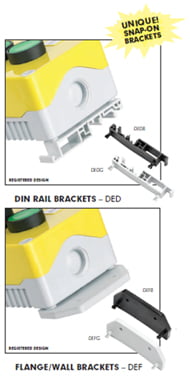

Hylec-APL offers a range of pre-installed control stations which combine tough IP67 enclosures with hard wearing push button and selector switches; helping installers to reduce time spent on-site. Installation is further aided thanks to unique, snap-on brackets for easy wall, chassis and DIN mounting.

*  Features a unique snap-on bracket for wall or DIN mounting.
*  Patented range of control stations available exclusively from Hylec-APL.
*  Up to IP67 protection depending on product.
*  5mm wall thickness provides enough strength to replace many metal enclosures.
*  Available with a huge range of buttons and switches; many variations available pre-assembled.
*  Delivered with two M20 threaded cable gland entries.

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Hylec-APL has added two IP68 electrical connectors to its waterproof range which have diameters that are less than that of a one pound coin. The inline connectors both use cable gland technology to form a completely weatherproof seal without the need for silicone gel. The connectors are designed so that the terminals form part of the outer casing making the overall diameter of the connectors just 23mm.

* Mini-TeeTube and mini-TeePlug have an innovative design which incorporates the wire terminals as part of the external housing.
* Housing ends features a dome topped cable gland and co-moulded sealing rings ensuring a high IP rating when assembly is complete.
* Both connectors can be ordered in 2, 3 or 4 pole options.
* Quick installation, wire piercing screw terminal blocks are also available which make it possible to secure the connection to IP68 standards in less than a minute.

.
