The Dedicated Range

Specific technologies and terminal blocks for dedicated applications (energy, machinery, automation) and markets.

Benefits:
• Meet your specific needs in connection thanks to a large scope of technologies and solutions
• Save space thanks to miniblocks
• Secure your connections thanks to IDC or spring loaded scew clamp technologies

Main Features:
• Dedicated technologies such as IDC, Spring loaded screw clamp, stud, ring lug
• Mini blocks for machinery applications
• Sensor/actuator functions
• Test & measurement terminal blocks
• Installation terminal blocks
• Protection terminal blocks

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Connection for Power and Energy Circuits.

The stud terminal blocks are dedicated to the connection and distribution of power into installations.

Benefits:
• Saved space in cabinets thanks to high density wiring with up to two conductors per stud.
• Increase operator security thanks to rotating and removable protective covers for jumpers and connections.
• Secured wiring thanks to the combination of lug and stud that prevent conductor pull-out.
• Reduce maintenance operations : our clamps include vibration resistant washers combined with highly resistant steel clamps.
• Assemby is facilitated and mounting time is reduced thanks to bi-stable foot that allows fast locking or removal of terminal block on rail.
• Allow installation flexibility with extra mounting options such panel or plate.

Main Features:
• Connecting capacity from 35 to 300 mm² (1 AWG to 1000kcmil).
• Technologies : stud-stud or hybrid stud-screw terminal blocks.
• Compatible with lugs in acordance with NF C 20-130 and DIN 46234.
• Connections and jumpering system are isolated (IP20) thanks to rotative protective covers.
• Pins allow terminal blocks to be snapped together for better stability.
• Derivation accessory for monitoring relays.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

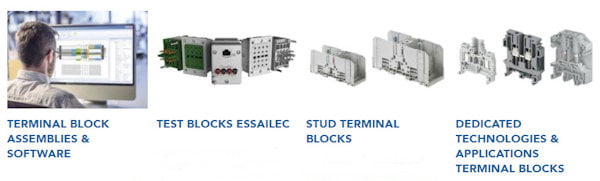

The Preferred Choice for Safe Testing of Current & Voltage Transformers

ESSAILEC test blocks allow to safely and easily perform test operations such as current and voltage measurement, monitoring, injection, repair or replacement of meters and protective relays installed in secondary circuits of current and voltage transformers or sensors.

Benefits:
• Reliably supports service continuity : current testing is performed without cutting the energy supply
• Save time during testing operation thanks to "plug & play" concept (socket + test plug)
• Simplify testing: simultaneous testing of 1 to 4 independent circuits on the same socket
• Secure the testing operations thanks to "make before break" test principle, colors and mechanical codings, covers

Main features:
• ESSAILEC allows: measurement, current or voltage injection, repair, device replacement
• IP20 protection degree for the socket and IP40 with the lid
• Sealed cover
• Panel and switchboard mounting : base, flush, rack, TH35 rail
• Several wiring technologies, wire connection up to 10 mm²

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Easy Rail Designer 3D

The terminal block assembly software enables to build DIN rail assemblies made with ENTRELEC terminal blocks in complete autonomy. While speeding up your project management Easy Rail Designer 3D makes the assembly design process easier, combining user-friendly and advanced functionalities. The powerful interface provides 2D/3D export capabilities as well as a 3D viewer.

Product Benefits:
• Assembly design process made easier
• User-friendly software for working in full autonomy
• Customized project management: user’s data integration, PDF reports, history of modifications

Product Features:
• 3D drawing: built-in 3D viewer and 3D drawing export
• CAD/CAE integration: export to the main CAD/CAE softwares
• Customization: Indication on the drawing of the supplier's, integrator's and end user's name, logotype and part number
• Intuitive Windows® user interface
• User-friendly configurator: Correction system, powerful search engine, insertion of products external to the database

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Power Distribution Block Products with 3 Configurations

Our exclusive compact and modular power distribution blocks distribute electrical circuits from a single input source to several devices in the branch circuit. Power distribution blocks are easy to install, save space, and allow increased productivity as well as flexibility of use. They are used in applications such as industrial and commercial panels HVAC, machinery, power distribution units (PDU), and commercial panels.

Benefits:
• 3 configurations in 1 product: Single pole & multipole splitter, grouping for solar
• Connect round or flat conductors and save up to 50% space compared to copper bars
• Reduce assembly time by 80% by avoiding to use fastening and isolating components
• Suitable for most recent solar installations with 1500V DC rating and up to 12 inputs
• Easy identification thanks to the delivered pre-printed markers L1, L2, L3, N, PE, +, -

Main Features:
• Rating from 80A to 500A
• Interlocking function for multiple pole assembling
• Two directions opening, snap-on and reversible cover
• Optional input for easy jumpering

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Smart Connections with Pluggable Terminal Blocks

The SNK series pluggable terminal blocks combine the benefits of our smart connections with the flexibility of the pluggable function. Pluggable technology brings modularity into the electrical installation allowing the combination of sub-assemblies and pre-wired harnesses that facilitate and considerably accelerate assembly test and factory commissioning. Qualified for worldwide markets, applications and for severe environments (including hazardous locations, railways, marine and solar applications etc.).

Benefits:
• Reliable in harsh conditions for Railways or Marine applications
• Cost effective solutions: only two plugs variants required to compose subsets of plugs without tooling
• Safety and protection against connection errors with coding pegs and accidental tearing with locking devices

Main Features:
• Connecting capacity from 0.2 to 4 mm² (26 to 10 AWG).
• Available in PI-Spring and screw clamp technologies
• Pluggable-Pluggable functions
• Withstanding rolling stocks vibrations and shocks tests

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The 2 in 1 Smart Connection

The patented PI-Spring technology of SNK series terminal blocks provides the benefits of both Push-In and Spring technologies in one connection. Qualified for worldwide markets, applications and for severe environments (including hazardous locations, railways, marine and solar applications).

Benefits:
• 50% faster connection time with push-in mode
• Reduced effort and conductor preparation time with spring mode
• Ease of wiring thanks to the front entry connection
• Excellent connections with or without ferrules proven by required certification testings
• Connection elasticity and design strictly controlled to provide for an easy and safe insertion of both conductor and screwdriver,
• The flat surface of the PI-Spring makes wire and screwdriver insertion smoother and easier.

Main Features:
• Connecting capacity from 0.2 to 25 mm² (26 to 4 AWG),
• Stainless steel PI-Spring for high corrosion resistance (>1000 h),
• The flat surface of the PI-Spring makes wire and screwdriver insertion smoother and easier
• Dimensions, coating and shape of the linking bar designed to get the lowest and most stable electrical contact value,
• Very good electrical contact even in applications where vibration and shock are issues, such as railway.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

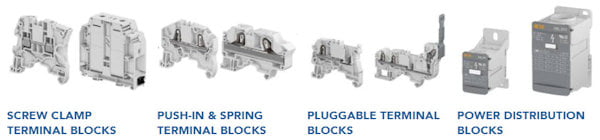

A smart design to support your daily connection challenges

The SNK series screw clamp terminal blocks offer rationalized functions and accessories while serving a large scope of applications. Qualified for worldwide markets, applications and for severe environments (including hazardous locations, railways, marine and solar applications).

Benefits:
•  Maintenance & trouble shooting operations are minimized thanks to our anti-release system. Screw is locked in total safety
• High density capacity screw clamp connection can fit up to two conductors per clamp which offers extended possibilities in electrical cabinets
• 50% faster assembly time thanks to the locking pin: 10 pre-assembled blocks plugged-in on rail at a time
• Excellent marker visibility thanks to the exclusive top marking location
• Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers

Main Features:
• Connecting capacity from 0.2 to 240 mm² (21 AWG to 500 Kcmil)
• Reliable hardened steel clamp
• Convenient double central channels allow multiconfigurations : jumpering, testing and measuring
• Time & stock saving with plug-in insulated jumpers, cuttable and available up to 50 poles
• Flat marking surface allows the use of marker cards, labels or pre-marking by hand
• Ready for new utility-scale photovoltaic installations with ZS150 / ZS240 screw clamp terminal blocks going up to 1500 V DC (IEC) and 1000 V DC (UL)

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

TE Connectivity proposes one of the largest Din Rail Terminal block offering on the market with various technologies: screw, PI Spring, spring, IDC, pluggable, stud, etc. found in over 8000 products & solutions.
