Our Panel Mount Solid State Relays are designed to easily mount on flat panels or heat sinks with screws through the SSR’s baseplate. Available in various industry standard sizes, the panel mount relay is currently the most used mounting type in the solid state relay market.

Our Panel Mount DC Output product offer provides a wide range of Solid State Relays available with current ratings of 3 to 160 Amps at 1 to 1000 VDC and motor ratings of up to 25 FLA/3 HP at 150 VDC, on single channel and motor reversing configurations.

These panel mount DC output SSRs are available with MOSFET technology to provide fast and reliable switching at high currents, and they are available with many different options such as screw terminals, quick connect terminals, optional protective covers, LED input indicators, and thermal interface pads, as well as heat sinks and other accessories.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The 1-DCL Series Panel Mount DC Solid State Relays offer MOSFET type output with low On-State resistance for reliable and fast switching of DC loads. These DC output SSRs are available with ratings up to 100 Amps at 100 VDC and 10 Amps at 500 VDC.

Features:
• UL approved, CE compliant to EN 60950-1
• DC control input: 3.5-32 VDC
• Reduces internal stress with epoxy-free design
• Level 3 EMC compliant

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Sensors and Relays used in the medical field often have lives depending on their accuracy, reliability and functionality. We are proud to be trusted suppliers to manufacturers of many vital resources used in hospitals and medical facilities all over the world.

Our Reed Relays are used in defibrillators, MRI Scanners and Electrosurgical Generators. Our Pressure Sensors control steam in medical sterilisers and autoclaves. Our Level Sensors monitor waste during dialysis treatment. At the forefront of new technological advances in medicine and infection control, Cynergy3 work in partnership with our medical customers to ensure reliable, safe, accurate performance wherever our products are required.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Type 68.55-4300 PCB mount power relay is ideal for a variety of high power applications such as generators, UPS, pumps, photovoltaic inverters and EV chargers.

Functions & Features:
• 4 NO 32 A
• 1 NC 3 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85°C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

Applications:
• Inverters
• Automation controls
• Pump control panels
• Uninterruptible power supplies (UPS)
• Current generators
• Charging columns

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

EL Series DC output solid state relays come in a compact, 21mm x 35mm housing and offer ratings up to 20 Amps. These compact SSRs come with a pre-installed thermal pad so there is no need to use thermal grease. All the EL series relays are C-UL-US and TUV certified and CE compliant.

EL Series relays come with quick connect terminals for easy installation. An innovative 90° bent terminals option is also available, ideal for applications with limited vertical space.

Features:
• Load current ratings of 5, 10 and 20 Amps @ 3-100 VDC
• Low dissipation Mosfet output
• Flexible 5, 12 and 24 VDC control voltage options
• Plastic housing with min. 250 CTI rating (PLC2) for demanding applications

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Type 68.54-4300 PCB mount power relay is ideal for a variety of high power applications such as generators, UPS, pumps, photovoltaic inverters and EV chargers.

Functions & Features:
• 4 NO 32 A
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

Applications:
• Inverters
• Automation controls
• Pump control panels
• Uninterruptible power supplies (UPS)
• Current generators
• Charging columns

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

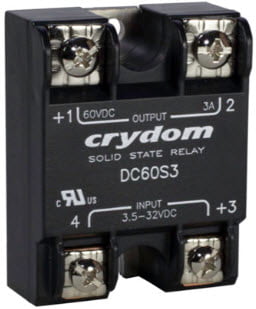

The DC60 Series are DC Solid State Relays with a cost effective bipolar transistor output in an industry standard panel mount package and ratings up to 7 Amps at 60 VDC.

Features:
• Ratings from 3A to 7A @ 60 VDC
• Flexible AC or DC control input
• Normally Open or Normally Closed Output

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Type 68.22-4300 100 A PCB mount power relay is ideal for a variety of high power applications such as generators, UPS, pumps, photovoltaic inverters and EV chargers.

Functions & Features:
• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)
• Cadmium free-contacts

Applications:
• Power Generators
• Back-up Generators
• Pump Controls
• Disabled Lifts
• Inverters

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The D06D Series Panel Mount DC Solid State Relays offer a low impedence MOSFET output to minimize total power dissipation. These DC output SSRs are ideally suited for both resistive and inductive loads (inductive loads such as motors and EMR/solenoid coils must be diode suppressed).

Features:
• Ratings from 60A to 100A @ 60 VDC
• DC control input: 3.5-32 VDC
• Relays are easily paralleled for higher-current applications

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Fast Relay Modules 8A

The RR Series consists of fast acting relays for mounting directly on a 35mm rail or on a PCB socket.

Functions & Features:
• 4 pole changeover or 3 NO + 1 changeover contacts
• DC voltage
• Operate time ≤ 3 ms
• LED command status indication
• 35 mm rail (EN 60715) mount
• PCB socket Type 90.21

Applications:
• Power Plants
• Control Panels
• Panels for Electrical Distribution
• Control and Management of Electric Power
