Power outages, sudden changes in the characteristics of the electricity supply network or unintended power overload conditions can all negitively impact on the normal activity of electrical panels and machinery.
The 6M Series power analyzer products are capable of measuring and exchanging data relating to power and/or energy being consumed or generated, while at the same time measuring the prime electrical characteristics that indicate the quality of the electrical network.
Designed for use in commercial and industrial electrical control and distribution panels, machine tools, or production and inverter equipment, they can also be particularly useful in PV systems, and EV charging stations.
Type 6M.Tx – Single phase Modbus quality power Monitors. All-in-one CT, Power/Energy meter and Supply quality monitor + Modbus communications.
Technical Features:
Type 6M.BU.0.024.2200 – Modbus RS485 RTU. Modbus TCP/IP Gateway with on board web server interface.
Technical Features:
All power monitors have an integrated Modbus RS485 communication port and the capability to measure bidirectional active energy (kWh). Additionally, instantaneous values for V (RMS), A (RMS), PF, kW, kVA, kvar, Hz, THD (I), Vpk, Ipk, Cosφ, are also measured/calculated.
Applications:
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
The SPR10-T is a solid state remote power controller and is suitable for DC 12 V and DC 24 V applications. A special feature of the SPR10-T is that it combines switching and protecting functions in a single device. In addition, it offers status indication by means of LED and status output.
Unlike conventional electronic and mechanical relays, the SPR10-T provides integral overcurrent protection. An additional external overcurrent protection element is not required. In the event of a failure, only the faulty path is disconnected and the fault is indicated at the device or at the status output; all other circuits remain unaffected. This ensures quick and easy trouble-shooting and increases machine uptime and system availability.
Direct mounting on symmetrical rails allows fast and flexible installation. In addition, several devices can very easily be connected by means of busbars, reducing wiring time to a minimum.
With current ratings of 20A and 25A, the SPR10-T is particularly suitable for powerful loads with a high current demand and a cable cross sections up to 10mm².
The combination of these properties is, with a width of only 12.5 mm, an efficient and compact solution for your application. You do not only save components, storage costs and space in the control cabinet, but you also significantly reduce planning and wiring efforts.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Our power relays are designed to withstand the tough requirements of the commercial vehicle industry, especially for construction and agricultural machinery. With the new plug-in connector compatible with the HDSCS series we are now also part of the connection technology in modern on-board electrical systems.
The plug-in connector is made of robust thermoplastic with flammability class UL94 V0 and has an integrated secondary interlock with poka-yoke principle. Even under the toughest conditions the control connections can no longer come loose.
The cables can already be precut. During final assembly of the vehicle they are only to be plugged in and locked. Special tools such as tightening torques, Torx bits, crimping tools for cable sockets etc. are no longer required during final assembly.
The reverse polarity protected plug-in connection ensures a clear assignment of the control contacts.
The plug-in connector provides a robust and save connection. It is protected with IP 5k4 against penetrating dust and water.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/

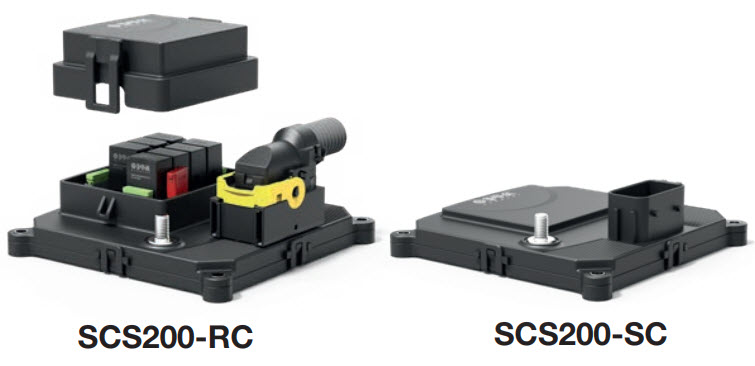

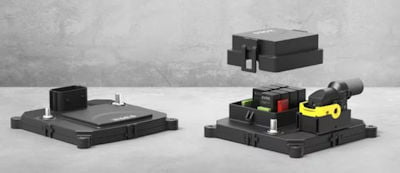

SCS200 - The Intelligent and Compact Power Distribution. Can-Capable Power Distribution for Decentralized Control and Monitoring of Loads with Comrehensive Diagnostic Functions.
More and more smart components in the vehicle and less and less installation space are topical subjects in the market. The SCS200 is the right answer to all these requirements.
It is an intelligent power distribution system, allowing decentralised control and monitoring of loads via the CAN bus. The design features a pcb-based power distribution in a compact IP67 enclosure. The SCS200 modules are plug-and-play solutions which help you reduce space and wiring time. Diagnostic capabilities (load current, voltage, load protection, status) and integral CAN connection ensure reliability and connectivity at the same time. The SCS200 was especially designed for the use in construction machinery, agricultural machinery and special vehicles.
Benefit:
Typical Applications:
Standards:
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
E-T-A offers the world’s most comprehensive product portfolio and customised solutions in the areas of circuit breakers, circuit protectors, electronic overcurrent protection (DC and AC), relays and power distribution systems - intelligent, conventional or customer-specific.
Each E-T-A product holds competence, know-how and a reliability based on decades of experience. At the same time, one thing is always at the heart of our endeavours: E-T-A products protect lives and values.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
E-T-A offer a wide range of modular and flexible power distribution systems.
• Intelligent complete systems for power distribution and overcurrent protection with smart control and monitoring technology
• Conventional power distribution systems with standardized series products as well as special solutions
• Customized system solutions for the mobile machinery, industry and telecommunications sectors
E-T-A experts will be happy to advise you in order to find the optimal solution for your application.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Electronic circuit protectors are purely electronic overcurrent protection devices. Electronic circuit breakers, however, offer mechanical disconnection in addition to the electronic trip, i.e. genuine physical isolation (bimetal).
• Devices for DC applications are ideally suited to selective protection of system components in industrial plants whose voltage supply is provided by a DC switch mode power supply.
• Products for AC applications are the ideal choice for the selective protection of uninterruptible power supplies (UPS) in industrial plants. These solutions ensure the power safety through AC UPS systems.
• The compact and flexible systems include a comprehensive DC 24 V protection and distribution solution for machine and panel builders, under the headline »all in one«.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Finder's 6M Series Power Analyzers
Power outages, sudden changes in the characteristics of the electricity supply network or unintended power overload conditions can all negitively impact on the normal activity of electrical panels and machinery.
The 6M Series power analyzer products are capable of measuring and exchanging data relating to power and/or energy being consumed or generated, while at the same time measuring the prime electrical characteristics that indicate the quality of the electrical network.
Designed for use in commercial and industrial electrical control and distribution panels, machine tools, or production and inverter equipment, they can also be particularly useful in PV systems, and EV charging stations.
Type 6M.Tx – Single phase Modbus quality power Monitors. All-in-one CT, Power/Energy meter and Supply quality monitor + Modbus communications.
Technical Features:
• True-RMS AC and DC measurements
• Accuracy class: 0.5% F.S.
• Up to 300 A – 800 V AC
• Up to 400 A – 1000 V DC measurement
• Bi-directional active energy measurement kWh
• Working frequency: DC or 1…400 Hz
• Fully configurable via Modbus RS485 interface (free software)
Type 6M.BU.0.024.2200 – Modbus RS485 RTU. Modbus TCP/IP Gateway with on board web server interface.
Technical Features:
• Ethernet com port: 10/100 Mb/s (Max 10 Client)
• Modbus RTU com port: RS485 up to115.200 bit/s (Max 200 slave)
• User interface: 6 LED
• Insulation between power supply, RS485, Ethernet: 1500 V
• DIN rail mounting
All power monitors have an integrated Modbus RS485 communication port and the capability to measure bidirectional active energy (kWh). Additionally, instantaneous values for V (RMS), A (RMS), PF, kW, kVA, kvar, Hz, THD (I), Vpk, Ipk, Cosφ, are also measured/calculated.
Applications:
• Charging Stations
• Inverter
• Panels for Electrical Distribution
• Control Panels
• Electrical Energy Control
• Industrial Robots
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Power management solutions begin with an understanding of your requirements. From concept to production, E-T-A is equipped with numerous standard systems along with the expertise and tools necessary to develop and produce a solution to meet the exact specifications of your application regardless of the complexity.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
