Low Profile PCB Relay (SSR)

Functions:
• Type 41.81-9024. 5 A, 24 V DC Output Switching
• Type 41.81-82-40, 3 A, 240 V AC Output Switching, Zero Crossing Switching

Features:
• Type 41.81 is a Solid State Relay for Printed Circuit Mount (direct or via PCB socket)   or
• Type 41.81 is a Solid State Relay for 35mm Rail Mount (via screw or screwless sockets)
• Silent and has speed switching with long electrical life
• LED Indicator
• Low Profile (15.7 mm)
• Wash Tight: RT III
• 2500V AC Insulation, Input-Output

Applications:
• Medical & Dentistry
• Industrial Robots
• Building Automation
• Control Systems
• Timers & Lighting Controls
• Door & Gate Openers
• Electronic Circuit Boards
• Vending Machines

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Millenium EVO - The Communicating Logic Controller For All Your Small-Scale Automation Projects.  (Millenium Evo Kit, Controller Xdp24-E + Crouzet Touch Ctp107-E, Cable, Software)

With its 4 ways of communication: Ethernet, Modbus, USB and Bluetooth, you can control and program EVO from a distance, continuously monitor your applications, and interact with other devices.

Control your EVO from a distance and in real time, by accessing its front control face from your PC, laptop, or mobile device. You can change the parameters with the Crouzet Virtual Display app, eliminating the added cost of an HMI. You can also edit and program your EVO even when already installed in your application, without the need to remove it or disconnect a single cable.

Monitor your applications and receive periodic datalogs to measure and record key parameters of your installation, as well as program regular email notifications for updates and alarms. You can also interact with other devices such as HMIs, drives, and other controllers via Modbus and ethernet, as the EVO can act as a slave inside your network.

Millenium EVO is equipped with 16 inputs which include digital, high speed counting, voltmeter, and many analog voltage inputs. Inputs for NTC temperature probes, which allow you to connect probes directly without the need of expensive signal convertors, are also available. Millenium EVO is expandable up to 44 I/Os.

EVO’s programming is made to be simple, with visual programming and a vast range of pre-programmed function blocks to drag and drop into your application. This new version of Crouzet Soft is the most intuitive and easiest to use software, even for first-time users. In addition to the pre-programmed function blocks, it has twice as much memory capacity as standard logic controllers - up to 1000 function blocks. EVO also has ready to configure communication protocols, supports complex data processing with its 32-bit capacity, allows you to combine function block and SFC programming, and helps you to organize your program with custom icons, images and text comments. You can create your own macros or use pre-programmed application blocks.

Give the software a try now, and download it for FREE to start creating, simulating and debugging your program, even before you receive the product!

Need even more? Millenium EVO and Crouzet Software are fully customizable. Crouzet’s Customer Adaptation Center is available to support OEMs with large volume automation projects where an adapted or customized solution will save money and/or enhance functionality. Crouzet can match your specific requirements and provide the solution you need.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

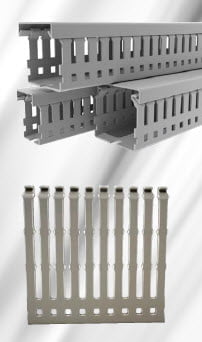

PVC & Halogen Free: 25/40/60/80/100/120 mm width 30/40/60/80/100 mm height

The Entrelec wiring duct range includes popular profile widths such as 24, 40, 60, 80 100 and 120 mm. The high-quality PVC & Halogen Free material allows the use in many applications such as standard industrial applications with PVC range to the most demanding applications such as railway, high buildings, marine and public buildings with the low smoke and Halogen Free range. The specific design offers many solutions to optimize and simplify the wiring.

SPEED UP YOUR PROJECTS
• Save time while breaking off ribs without using any tools
• Additional hole on the side, allow the use of cable ties to group your cables in an efficient manner
• Speeds up your maintenance work with our cover design that ease cover removal
• Quickly mount wire retainers on the bottom rail of the duct without screw and slide them along the rail.

EASY TO INSTALL
• Special rib pattern design allows more proper wire placement and cable grouping
• Lower scoreline provides easy splitting of wiring duct’s base and wall with no sharp edges
• Upper scoreline provides easy breaking off the ribs
• Smooth, burr-free edges protect installers from injury and wires from damage

FOR ALL YOUR NEEDS
• Low Smoke Halogen Free Wiring Ducts Fa ily complying with EN45545-2 (R22-R23,HL3) for railway
• Flame-retardant, self-extinguishing according to UL94-V0
• Wiring duct covers hold securely even in a vertical position and under vibration
• Temperature range from -25 °C up to +90 °C.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Bulgin is widely recognised as a leading manufacturer of environmentally sealed connectors & components.

With 100 years of experience in the industry, Bulgin continues to innovate & develop products & services to cater for its global customer base across a variety of markets.

An ever growing population calls for more vehicles to fulfil transportation needs. The rise of autonomous cars and increasingly connected vehicles also means that reliable and high performance components have never been more important in the automotive industry. Luckily we have a wide range of solutions perfectly suited to the demanding challenges of this industry.

From automotive manufacturing & testing equipment to truck lighting & control panels for agricultural vehicles, our products are involved at every stage of a motor vehicles life cycle.

With a wide variety of products on offer including sealed connectors for power, signal & data, we can also produce bespoke custom solutions that combine switches, enclosures, PCB’s & cable assemblies to meet the needs of demanding automotive applications.

Potential Applications:
• Power Diagnostics
• Wheel Diagnostic Equipment
• Military Vehicle Datacoms
• Off Road Vehicles
• Cherry Pickers
• Automotive Manufacturing
• Illuminated Taxi Sign
• Glove Compartment Light
• RV Heating / Cooling Systems
• Lorry / Truck LED Lighting

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

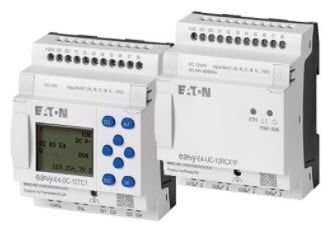

The easyE4 control relay from Eaton's Moeller range is ideally suited for the efficient, flexible and simple control and regulation of various applications. The series offers a wide range of communication options via the integrated Ethernet interface, including all the functions of a mini PLC for machine and system control. Components of different levels can be integrated using the Modbus TCP client and server functionality of the easyE4.

The easy communication module for SmartWire-DT turns the easyE4 into an intelligent relay, enabling you to monitor your machine or system. Thanks to the flexible expansion with up to 11 I/O modules and the wide voltage range (AC, DC and UC), the easyE4 is ideally suited for industry and building applications. In addition to the simple handling, programming the easyE4 devices is also very easy.

The intuitive easySoft software offers users the option of four programming languages. The easyE4 also features a wide range of visualisation options – whether on industrial displays or on mobile devices thanks to the integrated web server. Numerous other functions turn the easyE4 into a powerful microcontroller that can also be integrated into IoT system architectures.

Core Features:
• EasyE4 and expansion modules available in DC, AC and UC versions
• 12/24 V DC, 24 V AC and 100-240 V AC/DC versions
• Up to 11 local I/O expansion modules per easyE4
• Various communication options via the Ethernet interface: easyNET, Modbus TCP (client or server) and SmartWire-DT master
• Integrated web server for remote control and visualisation
• Automatic email notifications in case of any deviations within your application
• Push-in clamp and screw-terminal versions
• Four programming languages in easySoft: easy device programming (EDP), ladder diagram (LD), function block diagram (FBD), structured text (ST)

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

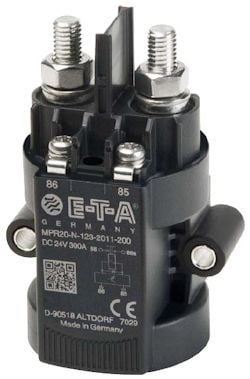

The Most Energy-Efficient Monostable Power Relay

The MPR20 is a monostable electro-mechanical high current relay. Its wide range input allows installation and operation in both 12V and 24V on-board electrical systems without change of the hardware and it carries 300A continuously. In the event of a power disruption, the relay will at once go into its original state due to its monostable design.

Reduction of holding power by 80% and of pull-in power by 50% allows direct connection to the controlgear and provides additional cost reduction and environmental advantages in spite of a monostable design. By using standard termination technologies and mounting dimensions, the MPR20 can easily and quickly replace conventional relays.

Benefits:
• Reduced fuel consumption and CO2 emission due to an 90% lower holding power
• Flexible installation for demanding applications due to a robust, water- and dust-proof design
• Reduced installation time through direct connection to the controlgear

Technical Data:
• Voltage Ratings                      DC 12V/DC 24V
• Current Ratings                     100A/200A/300A
• Degree of Protection            IP6k9k (IP67)
• Ambient Temperature          -40°C … +85°C
• Pull-In Current                       DC 12V: 2.5A/DC 24V: 3A
• Holding Current                    DC 12V: 0.12A/DC 24V: 0.7A

Standards:
• ISO 16750
• IATF 16949
• ECE R118
• ECE R10
• ASIL upon request

Typical Applications:
• Buses, trucks, construction machinery, agricultural vehicles and forestry equipment as well as special vehicles
• Air-conditioning, compressor units, battery isolation switches and applications in accordance with Machinery Directives

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Convenience Outlets Redesigned
• NR010 – IDC Along orientation for efficient wiring
NEW: IDC Cross Orientation to the Pin-Axis
• NR020 – The classic with improved temperature rating
• NR021 – Tamper Resistant

Schurter's latest series of appliance outlets NR020 and NR021 combine classic features with new ones to meet increased fire protection and safety standards according to UL 498 Tamper Resistant, as well as facilitating compliance of receptacles used in Household and Commercial Furniture and Furniture Power Distribution Units (FPDUs), according to UL 962 and UL 962A. Higher temperature ratings and added configurations for series NR010 and NR020 respond to power demands facing Datacom infrastructures today.

Higher Temperature Rated Receptacles:
Packing density of equipment for data communication and storage continues to be regularly revolutionized with the surge of usage and functionality. Increasing ambient temperatures go hand in hand with these advancements, as demand trickles down to the smallest components to keep pace with emerging needs of the appliance manufacturers. The NR010 and NR020 series have an operating temperature range of -25 ˚C to 150 ˚C in response to the power needs of the Datacom industry. In addition, the NR010 with IDC terminals in Along- and Cross orientation to the Pin-Axis provides a version with an independent L terminal for the IDC-Along version. The neutral and ground terminals can still be bussed, while the line terminal can be used for maximum load according to UL rating 15 A, 125 V. It also extends the capability of adding functionality to each outlet individually.

Tamper Resistant Receptacles – TRR:
The concept of tamper-resistant receptacles is not a recent development; these devices have been a standard product offering of wiring device manufacturers for many years. The devices are designed to protect individuals (primarily children) from accidental shock resulting from the insertion of foreign objects. The US National Electric Code NEC® Article 406.12 states that all 15- and 20-ampere, 125- and 250-Volt nonlocking-type receptacles installed in dwelling units must be Tamper Resistant. In 2017, changes to the Code expanded on these requirements and locations. Previously, tamper-resistant receptacles were required in dwelling units, guest rooms and guest suites of hotels and motels, and in childcare facilities. The expanded code brings these safety devices to preschools and elementary education facilities; business offices, corridors, waiting rooms and the like in clinics, medical and dental offices and outpatient facilities; to assembly occupancies such as places of awaiting transportation, gymnasiums, skating rinks, auditoriums; and to dormitories. These expanded locations are areas that small children frequently occupy.

Tamper resistant receptacles feature a UL recognized safety shutter system that prevents the insertion of foreign objects into a receptacle. The safety shutters will only open upon simultaneous insertion of two plug blades. Additional tests including Probe Test, Impact Test, Mechanical Endurance Test and Dielectric Voltage Withstand Test for Tamper Resistant Receptacles TRR are included in UL 498. After passing all the above performance tests, tamper-resistant receptacles must have either the words “Tamper Resistant" or the letters "TR" (minimum 3/16 inches high) on the device as a clear indication that this is a tamper-resistant receptacle.

Schurters’s NR021 NEMA 5-15R Tamper Resistant series meets the expanded code requirements according to UL 498. Additionally, with the option of an added insulated wall between the L, N terminals, compliance with the Spill Test, outlined in UL 962 Sec. 62, is more cost effective and efficient for manufacturers of Household and Commercial Furniture and Furniture Power Distribution Units (FPDUs).

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

U6630 Motor Features:
• Small Size
• Convenient for Application Requiring ADA Regulations (Americans with Disabilities Act)
• Low Power Consumption of 500W
• High Flow Rate
• Long Life of 1000 hrs

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

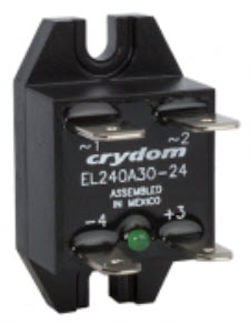

EL Series AC output solid state relays come in a compact, 21mm x 35mm housing and offer ratings up to 30 Amps. These compact SSRs come with a pre-installed thermal pad, input LED status indicator, optional built-in overvoltage protection, and are C-UL-US and TUV certified and CE compliant.

The EL Series mechanical design includes quick connect terminals and an innovative 90° bent terminals option ideal for applications with limited vertical space.

Additional Features of the EL Series Panel Mount AC SSRs Include:
• Load current ratings from 5 to 30 Amps @ 24-280 VAC
• Back-to-back SCR output with low off state leakage current
• Flexible 5, 12 and 24 VDC control voltage options
• Zero voltage or instantaneous turn-on outputs
• Plastic housing with min. 250 CTI rating (PLC2) for demanding applications

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The IWPT Wireless Pressure Transducer is a cost effective replacement to a traditionally wired pressure transducer that offers the advantages of a low-cost installation in inaccessible and expensive installation environments.

It is easily paired to any of the range of IWR receivers - thus offering a “plug and play” solution to your pressure measurement applications.

The instrument uses a piezo-resistive ceramic sensor mounted within a 316 stainless steel housing giving excellent media compatibility for the harshest of applications. A swivel adapter is available which allows the head to be easily aligned to the IWR receiver - see IWPT-SA.

The IWPT sensor can be used with any of the IWR range of receivers. A line-of-sight range of up to 500 m is possible depending on the wireless receiver used (refer to specific receiver data sheets for further information).

Each device is temperature compensated, calibrated and supplied with a traceable serial number.

Features:
• Pressure ranges from -1 to +400 bar gauge
• Up to 500 m line-of-site range (depending on receiver)
• Piezo-resistive thick film ceramic sensor with stainless steel body
• Five year battery life at 10 second transmission update rate
• Simple DIL switch pairing with the single or five channel receiver
• Single, five and multi-channel channel receivers available (up to 128)
• User-selectable transmission update rates
• Analog, digital, RS-232/485, Ethernet & USB receiver outputs
• Receiver clean contacts provide process alarm functions
• Suitable for liquids and gases

Typical Applications Include:
• Simple cable replacement installation – dispense with expensive cable runs
• Environmental monitoring – pumping stations, sewage plants, water treatment
• Facilities management – boiler rooms, plant hydraulics, plant pneumatics
• Asset monitoring – tanks farms, process plants, HVAC and building management
• Service Contract – temporary installation for servicing and field trials
