Relay Interface Modules – Single Output SSR

Function:
• Type 38.91 SSR interface module with screwless terminals.
• High switching speed and long electrical life.
• Single pole SSR output – AC or DC switching
• DC or AC/DC input
• 35 mm rail mounting (EN 60715).
• Ideal for PLC and electronic systems.

Features:
• Sensitive DC or AC/DC input voltage
• AC or DC output switching (1 NO)
• Supplied with integral coil indication and protection circuit
• Quick and easy ejection of relay using plastic retaining clip
• UL Listing (certain relay/socket combinations)
• 35 mm rail (EN 60715) mounting
• Screwless terminals

Also Available as Type 38.91.3 with:
• Special input leakage current suppression circuit
• AC or AC/DC input voltage
• AC or DC output switching (1 NO)

Applications:
• Bottling Plant
• Packaging Machines
• Control Panels
• Traffic Light Controls
• Vending Machines
• Programmable Controllers
• Panels for Electrical Distribution
• Labelling Machines

Enquiry Form: https://www.epreston.co.uk/contat/

Home Page: https://www.epreston.co.uk/epblog/

Rapid Link is a distributed, electronic drive system that is used for both simple and complex tasks in material handling systems. It offers all the features needed to switch, control, protect and network the electric motors of conveyor belts. The system consists of the RAMO5 electronic motor starter and the RASP5 variable frequency drive, both of which are available with IP65 protection.

Typical Rapid Link applications include baggage handling systems, industrial production sites and logistics centres. The devices are mounted in the vicinity of the drives, and can be quickly and reliably connected by means of standardised plug-in terminals. Users can switch between manual and automatic operation by means of a key switch. In automatic mode, the devices communicate via AS-Interface, the fieldbus of choice in material handling systems.  In addition, Rapid Link 5 can now also communicate via the Ethernet/IP and Profinet fieldbus systems.

CORE FEATURES
RAMO5 Electronic Motor Starter:
• One standardised size for power ratings from 0.09 kW to 3 kW
• DOL and reserving starter versions available
• On-site operation on board
• Long life span of more than 10 million operations
• Approvals: CE, cUL, CCC

RASP5 Variable Frequency Drive:
• One standardised size for power ratings from 0.75 kW to 4 kW
• On-site operation on board
• Precise and reliable vector control for PM motors
• Built-in STO (safe torque off) safety function
• Integrated breaking resistor for dynamic or lifting applications
• Integrated EMC filter
• Approvals: CE, cUL

A Practical Housing Design:
The unique and flexible Rapid Link 5 housing design makes it much easier to install new systems or expand existing ones. As a result, the power and motor cables can be supplied either from below or from the left or right, as required. This makes it possible to install each device in line with individual requirements while keeping the footprint to a minimum.

And thanks to the uniform mounting dimensions, which are identical across all types and power ratings, a single mounting frame covers the entire range. Should it become necessary to replace a motor starter with a variable frequency drive during commissioning, for example, this can likewise be done without any additional preparation time and costs.

IoT Ready:
Rapid Link 5 forms an integrated system and covers the AS-Interface, Profinet and Ethernet/IP fieldbus systems. Integration into IoT solutions is therefore possible without any problems. In large material handling systems, this also enables a high degree of data transparency down to the device level, which allows for the implementation of remote maintenance and comprehensive power management. In addition, all the Rapid Link devices meet the highest security requirements and thereby offer effective protection against cyber attacks.

Easy Configuration and Diagnostics:
With the serial RJ45 interface, several configuration options are available: Eaton's comprehensive and convenient external keypads, the communication stick, the drivesConnect Windows software, or the drivesConnect mobile app for smartphones or tablets. This makes it possible to configure, copy and save the parameters as well as to display setpoint and actual values, or to read out the diagnostic and fault memory on site.

The simultaneous graphical representation of up to four real-time values allows users to gain a quick overview and to rapidly identify if any parameter settings have changed. In the case of parameter sets that have already been saved, offline processing without the variably frequency drive is also possible. The parameter sets can be easily copied to any number of devices, which also saves time during commissioning.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Push-In Technology: Connection Capacity: from 0.5 to 2.5 mm² - 22 to 12 AWG

The Entrelec push-in connectors are perfect for all indoor applications. The push-in technology reduces the connection time and the compact design ease the installation in tight spaces. The connectors are compatible with 0.5 to 2.5 mm² (22 to 12 AWG) solid wires and the clear body provides visual control of the termination. The color-coding ease the identification of the 5 products sizes, from 2 to 6 positions.

SPEED UP YOUR PROJECTS
Push-In Connection:
• Save 50% installation time compare to screw technology.
• Easy and quick insertion for rigid and solid wires.
Compact Design:
• Fit perfectly in very tight spaces, ideal for all junction boxes.
Easy Identification:
• Find the right connector size quickly thanks to the color coding.

SECURED INSTALLATION
Visual Control:
• Transparent housing to verify proper conductor insertion.
Easy Testing:
• Easy factory or field control with the test slot for voltage testing.
Always Perfect:
• Stripping guide at the back of all connectors to respect the 11 mm / 0.43 in for each wire.

FOR ALL YOUR NEEDS
Up to 6 Wires Connected Together:
• Connectors available with 2, 3, 4, 5 and 6 connections.
Large Wire Size Range:
• Connection capacity from 0.5 to 2.5 mm² (22 to 12 AWG) for rigid and solid wire only.
Extreme Conditions:
• Resist to a high ambient temperature. Polycarbonate, flame retardant (UL94-V0).

PRODUCT COMPLIANCE / APPROVALS
• IEC 60998-1 & IEC 60998-2-2
• UL 486C
• CSA C22.2 No. 188-13

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Bulgin is widely recognised as a leading manufacturer of environmentally sealed connectors & components.

With 100 years of experience in the industry, Bulgin continues to innovate & develop products & services to cater for its global customer base across a variety of markets.

With the rise of big data, the Internet of Things (IoT), Industry 4.0 & the race for super fast broadband in recent years, the demand for electronic components is higher than ever before. Despite an increasing shift towards wireless technologies, the core equipment that enables these systems to operate are still heavily reliant on physical components such as electrical connectors, battery holders & switches.

In an increasingly connected world, we have the necessary solutions to fulfil the ongoing needs of data centres & telecom networks across the globe. From power distribution to high speed data transmissions & user interface components, we have the solutions that you need to manage the stringent data demands of the future.

Potential Applications:
• Small Cell Backhaul Systems
• Uninterruptible Power Supply
• Network Encryption Equipment

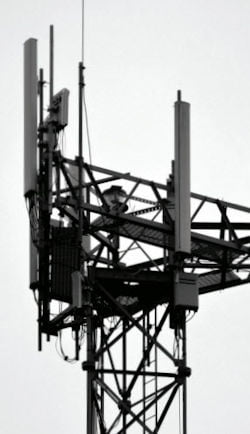

• Telecom Towers
• Portable Satellite Equipment
• Data Centre Servers
• Satellite Communication Networks
• Mobile Network Transmitter
• Military Vehicle Datacoms
• Network Server Cabinets

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Most Powerful High Voltage Relay Up To 1000 V

The HVR10 is a hybrid powerful high end high voltage relay in a compact design. It combines physical isolation of high voltages via an electro-mechanical contact and state-of-the-art semi-conductor technology.

The hybrid, arc-free switching system allows reliable disconnection, even in the event of an overload, of up to 2 megawatts – 2,000 A/ 1,000 V. The HVR10 withstands high short circuit currents up to 5,000 A until the fast HV-fuse trips. The fist-sized unit can switch and permanently process 300 A at 900 V up to 50,000 times, arc-free and wear-free. The innovative self-monitoring function immediately signals critical operating conditions to the controlgear.

Features:
• Continuous current capacity of 300 A at 25 °C or 250 A at 85 °C.
• The rupture capacity of up to 2000 A at 1000 V is valid for both current directions without restrictions. It is therefore possible to lead even high charging currents over the relay.
• Very low current consumption in the ON condition of typically 0.2 W (12 V * 18 mA) due to a bistable drive, which only draws power from the supply when the switching status changes.
• For a short period of time, the HVR10 can carry up to 5000 A (25ms) and facilitates the co-ordination with a suitable HV fuse.
• The switching status of the mechanical contact system as well as the current rise upon switch-on operation is continuously monitored. This allows information of the control unit about critical operating conditions.
• The hybrid switching concept uses an electronic bypass that successfully suppresses the arc, thus significantly reducing the thermal load of the mechanical contact system.

Benefits:
• Reliable disconnection even in critical conditions up to 2,000 A at 1,000 V
• High protection of the on-board electrical system through integral fault detection and indication
• Long life span through low-arc switching operation

Applications:
• All utility vehicles, e.g. buses, trucks, construction machinery, specialty vehicles with electrical power train, mining vehicles etc.
• Voltages beyond the 450 V system voltage, charging stations, power storage and main relays in the vehicle

Standards:
• ISO 16750
• IATF 16949
• ECE R10

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Active, Electronic Switch for the Harshest Conditions
- Minimal installation depth
- Multi color side illumination
- Modern and fresh design

Compact, light and powerful - these are the requirements that are placed on a switch in a variety of applications. The installation depth often interferes with these requirements. This is not the case with the new MSS from Schurter, but it has even more to offer. Its fresh, lively design with multi-color side illumination and the new switch technology make it stand out from the crowd on the market.

The new MSS uses a technology that was previously unknown in the electronic switch world. The MSS is an active electronic switch that reacts to a minimal deformation of the actuating surface. The technology is extremely precise so that only a small amount of pressure is required.

Gentle Pressure Required
Even light pressure on the surface of the button triggers the switching signal. A mere touch - as with a capacitive switch - is not sufficient for this. For many areas of application, this is exactly what is required. This ensures that no switching function takes place in such a case. The design of this technology is particularly compact and thus enables the low installation depth of the MSS.

Tough Performer
The Schurter MSS switches offer the highest reliability. As they have no moving parts, their service life is more than 20 million switching cycles. Thanks to the enclosed design, the MSS achieves protection class IP67 and shock resistance rating IK06. These values predestine it for use in particularly demanding environments.

Modern and Fresh Design
The innovative multi color side illumination not only provides the user with visual feedback, but also makes the unit's user interface "appear in a new light".

But even with the non-illuminated versions, clear function assignments can be made through the various color versions available. Depending on the color choice of the switch, this gives the user interface a fresh, lively appearance.

Application Areas
The MSS switches are extremely versatile. Due to their technical features, they can be used in industrial installations as well as in devices for the consumer market.
