Crouzet HIH Relays monitor the stadium lighting electrical network current in order to alert the maintenance team as soon as a failure occurs.

The Olympic Committee defines strict standards for stadium lighting. The luminosity must be uniform on surfaces during the games to ensure an equity between athletes and an optimal quality of television broadcasting.

To ensure a top quality lighting of the event, the regulation imposes a maximum duration of 20 minutes between the breakdown and the repair of a stadium projector. That is why it is key to equip each stadium and playing field with a system checking the operating condition of the headlamps.

Features:
• Control of AC and DC currents
• Automatic recognition of AC/DC
• Measurement ranges from 2 mA to 10 A
• Choice between over and undercurrent
• True RMS measurement
• Selectable latching (memory) function

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Easy Wiring with a New Plug-In Connector

The 3120-N thermal circuit breaker is a single pole or double pole device which can also serve as an ON/OFF switch. Based on its cost-saving design - two functions in a single unit - it has become an integral part of many applications in medical equipment and in apparatus and machine construction. Manufacturers of professional tools also like to use it because of its compact design.

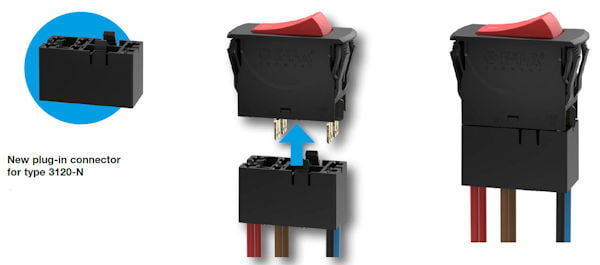

As a new accessory E-T-A offers a plug-in connector for easily wiring the connecting cables.  Two retaining clips ensure a tight connection between the plug-in connector and the breaker. The dimensions of the female contacts (tab width 6.3) are in accordance with DIN 46340 part 3, shape A. E-T-A standard delivery scope is without female contacts.

Benefits:
• Reduction of wiring time during final installation saves time and costs - The plug-in connector can easily be pushed on without tools with a single movement. Female contacts do not have to be plugged on individually.
• Wiring errors are excluded during final assembly - The plug-and-socket connection follows the key-lock-key-principle so that the plug cannot be pushed in the wrong way round (fool-proof).
• Cable contact with long-term stability - The cable lugs latch irreversibly in the connector. The clamping arms of the connector ensure an extremely firm connection between circuit breaker and connector.
• Pre-wiring can be ordered externally - This allows you to use the know-how of specialised cable assemblers.
• Breakers can be swapped quickly and easily - The "old device" can be pulled out with a single movement. Then just push in the new device. Done!

Click for More Information →  3120-N New Generation

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Protecting and Switching in a Single Component

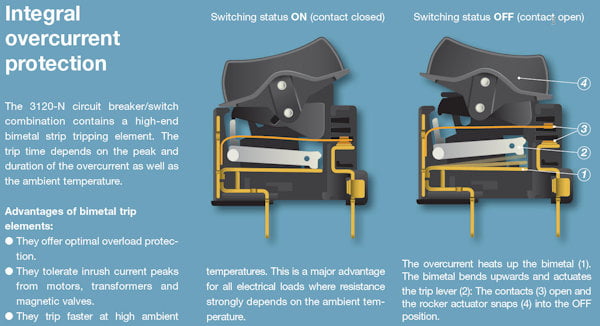

E-T-A’s 3120-N is a single pole or double pole thermal circuit breaker with a bimetal trip element that also serves as an ON/OFF switch. After tripping due to overcurrent, the 3120-N can easily, reliably and quickly be reset. Time-consuming replacement of fuses is eliminated. The 3120-N circuit breaker/switch combination helps you significantly reduce mounting and wiring time as well as expenses for material planning and stocking expenses.

The 3120-N rocker version is available as non-lighted or lighted (12 V - 400 V) and offers various actuator colours as well as marking choices. The 3120-N push button includes the traditional red/green option as well as a unique offering of protection from accidental operation.

                   With Rocker Actuation:                                                With Push Button Actuation:

* Add-on modules for undervoltage release, magnetic trip, remote trip and auxiliary contacts are also available. Appliance inlet modules, plug-in connectors, terminal adapters and a range of additional accessories guarantee solutions for your challenging applications.

Benefits:
• No fuse replacement required - After tripping due to overcurrent, the 3120-N can easily, reliably and quickly be reset.
• Reduced mounting and wiring time - You only mount one component. In addition, cables to connect switch and blade fuse are eliminated.
• Reduced planning and storage costs - 3120-N replaces a switch, a fuse-holder and blade fuses. This makes purchasing logistics much easier.
• Space-saving design - The 3120-N features space-saving integral overcurrent protection. This leaves room for creativity and ideas in terms of space design, even in constricted areas.
• Enhanced reliability - Less single components always mean: less sources of error. E-T-A’s 3120-N helps you consistently increase the overall reliability of your products.

Applications:
• Household, Hobby & Garden Equipment
• Industrial equipment control
• Medical technology

Click for More Information →   3120-N New Generation

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Bulgin Circular Fiber Connector range offer high quality and reliable fiber connectivity solutions. Suitable for use in industries such as outdoor broadcast, FTTX (fiber to the x), server room engineering, civil engineering, marine, aviation and rail applications.

4000 Series - Simplex LC Fiber Buccaneer:
• Sealed to IP66 IP68 and IP69K when mated
• IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks
• Simplex LC-Type Interface
• Cabled Versions: 0S1, 0M1, 0M3
• Cable range from 5 to 450m
• Diameter over coupling ring 19.7mm
• Flex, Inline and Rear Panel
• Colour coded O-rings & washers for easy identificaiton purposes
• Secure, proven locking system
• Flame Retardant moulding material - Polyamide UL94-V0
• Tamper proof construction
• Sealing caps available to maintain IP68 rating
• EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1

6000 Series - Duplex LC Fiber Buccaneer:
• Sealed to IP66 IP68 and IP69K when mated
• IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks
• Duplex LC-Type Interface
• Cabled Versions: 0S1, 0M1, 0M3
• Cable range from 5 to 450m
• Diameter over coupling ring 32.0mm
• Flex, Inline and Front Panel
• Secure, proven locking system
• 30o twist locking. Tamperproof lock prevents accidental un-mating
• All plastic body version; UL94-V0 rated, UV stable, halogen free Light-weight, self-extinguishing material suitable for long-term outdoor use.
• Sealing caps available to maintain IP68 rating
• EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Plug-In / PCB Mount Solid State Relays

Sensata | Crydom CN Series AC & DC Output Plug-in Solid State Relays are thin 5 mm wide relays ideally suited for high density PCB applications.

CN Series SSRs are designed to be pluggable into industry standard relay sockets or solderable into printed circuit boards, and they are available in ratings of 2 Amps at 24 to 280 VAC or 0.1 to 6 Amps at 0 to 100 VDC. They are UL recognized and CE compliant.

Features:
• 5 mm Mini SIP SSR
• Ratings 24VDC _3.5A, 48VDC _100mA, 100VDC _6A and 240VAC_2A
• DC Control, 5, 24 and 60 V
• UL & cUL recognized @ 40°C, 100K-Cycle Endurance Test
• CE & RoHS Compliant

Applications:
• Automation Equipment
• Test Equipment
• Packaging equipment
• Valves & Solenoids
• Vending Equipment
• Medical Equipment

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The IWDigT Wireless Transmitter is a cost effective alternative to traditional wiring that offers the advantages of a low-cost installation in inaccessible and expensive installation environments.

It is easily paired to any of the range of IWR receivers - thus offering a “plug and play” solution to your digital switched or pulse counter application.

The IWDigT sensor should be used with any of the IWR range of receivers. A line-of-sight range of up to 500 m is possible depending on the wireless receiver used (refer to specific receiver datasheets for further information).

Features:
• Wireless transmission of single digital signal
• Up to 500 m line-of-site range (depending on receiver)
• Five-year battery life at 10 second transmission update rate
• Simple DIL switch pairing with the single or five channel receivers
• A range of receivers are available
• User-selectable transmission update rates
• Receiver clean contacts provide process alarm functions

Typical Applications Include:
• Simple cable replacement installation – dispense with expensive and tortuous cable runs
• Process Doors and Machine Access Points – monitor open/closed status
• Water, Gas, Electricity Meters – ingest a pulse counter input and transmit

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

ZF E-bike Speed Sensor Enriches the New Trend of ABS Applications

The ABS system has become indispensable in passenger and commercial vehicles. This safety function is also becoming increasingly popular for e-bikes. Bicycle accidents are often caused by uncontrolled braking, especially during emergency stops or braking on gravel and wet roads. The anti-lock braking system ensures a safe slowdown by evenly deaccelerating the front and rear wheels. To do this, the speed on both wheels must be measured constantly and precisely. The Hall-based speed sensor from ZF promotes this solution.

The ZF e-bike speed sensor GS82-AA02 was specially developed for use in Pedelecs and S-Pedelecs. Based on Hall technology, the sensor in combination with an external, ferromagnetic speed disk achieves a high-resolution speed measurement. The sensor targets the slot structure of the speed disc and, depending on the number of slots, it transmits up to 50 or more speed signals per wheel revolution. In practice, this leads to a finer and quicker response from the e-bike drive. The ABS system also benefits from the high resolution in speed. With the precise speed values of both wheels, the ABS control unit can adjust the wheels to each other and brake them in a controlled manner.

The extremely compact design (21.75mm long x 9.35mm in diameter) of the sensor fulfills the necessary requirements for the use in e-bikes. The speed sensor is based on the principle of the Hall effect and therefore it is contactless and wear-free. The differential measurement of the magnetic flux also increases the robustness of the sensor against vibrations. Depending on the customer's requirements the contact via connector, as well as the cable length, can be preselected individually. The sensor requires a constant voltage supply of 6.5 - 20 VDC and measures frequencies between 1 and 2,500 Hz. They are designed for a temperature range from -25 °C to + 85 °C to fulfill the declaration of conformity in the e-bike industry.

Characteristics
• Hall based non-contact and solid-state sensor
• Virtually unlimited life, no wear and tear from friction
• Immune to vibration, shock, dirt or water for an improved functional safety especially for Pedelecs, S-Pedelecs and E-Scooter
• Available standard product with Higo connector. Flexibility in terms of cable length and connector assemblies.
• High resolution in combination with speed and brake disk especially for slow speeds (e.g. hill starts)
• Hall sensor with speed disk for improved manipulation resistance and robustness
• Best suitable also for ABS-Systems

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Finder 39 Series: MasterINTERFACE - Relay Interface Modules (EMR or SSR) 0,1...6 A

The 39 Series is a range of modular interface relays which include the following features (according to Type):
• 6.2mm wide
• DC, AC or AC/DC coil versions
• Special coil/input leakage current suppression types
• With fuse protection module
• Timer version
• ATEX/HazLoc compliant (EX nC) option available
• Push-in and screw terminals

Applications:
• Bottling plants
• Packaging Machines
• Traffic Light Controls
• Carousel Warehouses
• Control Panels
• Panels for Electrical Distribution
• Labelling Machines
• Hoists & Cranes

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Dedicated Range

Specific technologies and terminal blocks for dedicated applications (energy, machinery, automation) and markets.

Benefits:
• Meet your specific needs in connection thanks to a large scope of technologies and solutions
• Save space thanks to miniblocks
• Secure your connections thanks to IDC or spring loaded scew clamp technologies

Main Features:
• Dedicated technologies such as IDC, Spring loaded screw clamp, stud, ring lug
• Mini blocks for machinery applications
• Sensor/actuator functions
• Test & measurement terminal blocks
• Installation terminal blocks
• Protection terminal blocks
