Relay Interface Modules 7 - 10A

The 58 Series interface modules are available with screw or push-in terminals and are particularly suited for interfacing with PLC systems. Features include (according to Type):

Function & Features:

• 27 mm wide
• AC or DC coils
• Quick and easy ejection of relay using plastic retaining clip
• Supply status indication and EMC coil suppression module
  as standard
• Push-in and screw terminals
• Mechanical indicator & test button
• ATEX/HazLoc compliant (EX nC) option available

Applications:

• Control panels
• Packaging Shipyards
• Textile machines
• Carousel warehouses
• Panels for electrical distribution
• Hoists and cranes

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Relay interface modules 8-10-16A

The 4C Series comprises relay interface modules suitable for interfacing with PLC systems. Features include (according to Type):

Function & Features:

• 15.8 mm wide
• AC or DC coils
• Quick and easy ejection of relay using plastic retaining clip
• Supply status indication and EMC coil suppression module
  as standard
• Mechanical indicator & test button
• Push-in and screw terminals

Applications:

• Hoists and Cranes
• Escalators
• Road / Tunnel Lighting
• Carousel Warehouses
• Control Panels
• Panels for Electrical Distribution

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Relay Interface Modules 8 - 10 - 16A

The 48 Series comprises relay interface modules for safety/energy applications and interfacing with PLC systems. These devices include the following features (according to Type):

Function & Features:

• 15.8 mm wide
• AC or DC coils
• Quick and easy ejection of relay using plastic retaining clip
• Supply status indication and EMC coil suppression module
  as standard
• Push-in and screw terminals

Applications:

• Control Panels
• Carousel Warehouses
• Medical and Dentistry
• Shipyards
• Elevators and Lifts
• Panels for Electrical Distribution
• Building Automation
• Hoists and cranes

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Miniature Industrial Relays 8 - 16A

The 46 Series comprises industrial power relays with the following features (according to Type):

Function & Features:

• DC coils, 500 mW or AC coils, 1.2 VA
• Socket Mount or Direct Connection via Faston Connectors
• Available with Lockable Test Button, Mechanical Flag
  & LED Indicator
• 8 mm, 6 kV (1.2/50 μs) Isolation, Coil-Contacts

Applications:

• Automation for Blinds, Grilles and Shutters
• Elevators and Lifts
• Shipyards
• Road / Tunnel Lighting
• Hoists and Cranes
• Bottling Planats
• Control Panels
• Panels for Electrical Distribution

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Miniature PCB Relays 8 - 10 - 12 - 16 A

The 40 Series comprises relays which include the following features (according to Type):

Functions & Features:

• PCB/plug-in versions DC coils (standard or sensitive)
• 500 or 650 mW & AC 5.3 mm pin length 8 mm
• 6 kV (1.2/50 μs) isolation, coil – contacts

PCB Version:

• DC coils, 500 or 650 mW
• 3.5 or 5.3 mm pin length
• 8 mm, 6 kV (1.2/50 μs) isolation, coil – contacts
• Flux proof: RT II standard (RT III version available)

Applications:

• Medical and Dentistry
• Control Panels
• Panels for Electrical Distribution
• Toys
• Automation for Blinds, Grilles and Shutters
• Door and Gate Openers
• Electronic Circuit Boards
• Vending Machines

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Finder 39 Series: MasterINTERFACE - Relay Interface Modules (EMR or SSR) 0,1...6 A

The 39 Series is a range of modular interface relays which include the following features (according to Type):

Functions & Features:

• 6.2mm wide
• DC, AC or AC/DC coil versions
• Special coil/input leakage current suppression types
• With fuse protection module
• Timer version
• ATEX/HazLoc compliant (EX nC) option available
• Push-in and screw terminals

Applications:

• Bottling plants
• Packaging Machines
• Traffic Light Controls
• Carousel Warehouses
• Control Panels
• Panels for Electrical Distribution
• Labelling Machines
• Hoists & Cranes

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

SCS Smart Control Systems - Intelligent CAN Solutions for Utility Vehicle

SCS1000 and SCS3000 – Logic and Power Distribution in One Module

New technologies and future oriented systems are crucial for the design of on-board electrical systems.
The growing number of electrical vehicle components and the need for data transmission between single devices quickly leads to large and heavy cable harnesses and increased wiring complexity.

The SCS3000 and SCS1000 series are extremely compact power distribution systems with integrated logic. The modules offer a wealth of functions together with high performance in a very small package. The SCS3000/1000 are ideal in terms of upgradeability for fleet modernisation, retrofits and projects where space saving is paramount.

Typical Applications:

• Agricultural and forestry equipment, construction machinery, specialty vehicles, truck & bus
• Centralised and decentralised power distribution
• Small to large system architectures

Overview:

• Up to 280 A total current
• Up to 40 A per channel
• High-side and low-side switching
• IP67 housing

Space-Saving and Robust Through Efficient Semi-Conductor Technology:

• Enhanced safety and diagnosis through real-time analysis
• Progressive load management through softstart and inrush-functions
• Adapted to your requirements through configuration via graphic programming environment

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

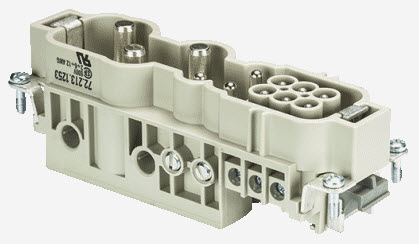

revos HD is the specialist for high-pole connections. The robust housings offer space for contact inserts with 15 to 64 poles and are designed for currents up to 10 A (as per DIN EN 17 5301-801). Alongside system engineering and machine building, revos HD also demonstrates its strengths in escalators, small motors, and injection molding machines.

revos HD Boasts:

• A high contact density
• A reduction in control cabinet volume due to the compact design
• Simple potential distribution with insulated connection comb
• A wide variety of labeling options

revos HD is ideal for use in machine, control, and switching systems.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

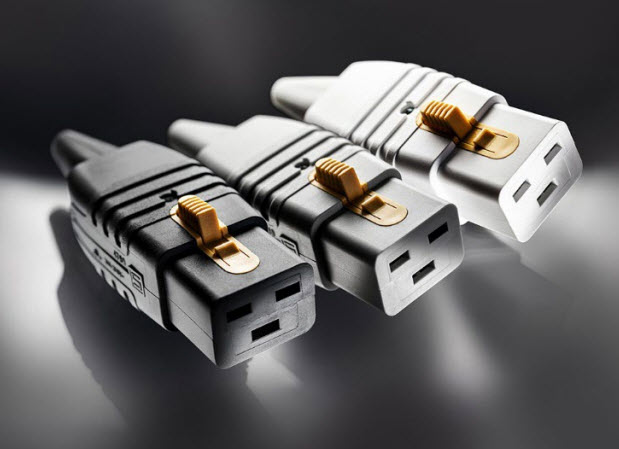

IP54 In Plugged State with the Dedicated Power Cord

• Very high protection against dust and moisture
• IEC 60320 and IEC 60529 compatible connection
• Protection class II version added (IEC 60320 C18/C17)
• Power entry modules now also available in white

Following the successful launch of the two power entry modules DG11 and DG12 with increased IP protection, Schurter now also offers both models in variants for protection class II applications and in white as well as black.

Protection against dirt particles and moisture is becoming increasingly important. With the DG11 and DG12 product types and the corresponding V-Lock mains cable, Schurter launched an IP54 device connection that was immediately very well accepted. An IP54 value in the plugged-in state in accordance with IEC 60529 offers excellent protection against dust particles and is also splash-proof.

New Variants for Protection Class II
The existing variants of DG11 and DG12 were designed exclusively as 3-pole versions for protection class I applications. There are now 2-pole variants which explicitly meet the higher requirements of protection class II. Of course, this also applies to the associated V-Lock mains connection cable for cord retention.

Special Sealing Elements
The appliance inlet as well as the connector of the V-Lock power cord have been equipped with special sealing elements to achieve this really high IP protection.

Black or White
In response to multiple customer requests, Schurter now offers the two power entry modules DG11 and DG12 in white as well as the most commonly used black.

Application Areas
Wherever dirt, dust particles or splash water may occur, the new Schurter technology is the perfect choice. This may be the case in harsh working environments in industry. In the medical field, a higher IP protection rating is mandatory. This is simply due to the necessity of cleaning and disinfecting medical equipment on a regular basis, and even sterilizing it if required. The food processing industry has very similar requirements.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Hylec-APL this year celebrates 10 years since the launch of its innovative Debox cable junction box series.

Now extending to five models, the versatile Debox in-line junction box family’s offer faster, more efficient and therefore cheaper installation through its simple and virtually tool-free use.

Millions of units of Debox have been sold during the decade since its launch, helping electrical installers worldwide save time and money without compromising quality.

The Debox series of innovative cable junction includes the following five models to address different application use cases.

Debox S
Re-imagined and designed to speed up every installation, the original Debox S is a cost-effective, innovative all-in-one cable junction box. Complete with 4-pole 24A UL/VDE-approved terminal block as standard, Debox S conforms to EN60598-1 (GWT 650°C). Pre-fitted with external fixing lugs for fast, easy mounting, Debox S comes complete with everything you need – including in-built cable clamps and locking clip – for rapid, simple and virtually tool-free installation.

Debox SL
Introduced the first ever completely tool-free in-line electrical junction box. Now featuring a new easier-to-use, double lever screwless terminal block, Debox SL offers maintenance-free connections. Its safe, fast and reliable 100% tool-free assembly is supplied complete with 4-pole 16A connector block, capable of accommodating 2, 3 or 4 conductors in round or flat profile cable for lighting circuits or power.

Debox SL2
Is the smallest junction box available with 5 poles. Each individual 32A screwless lever connector can take up to 3 conductors and the box features unique push-fit cable clamps. Debox SL2 saves valuable time and makes installation easier for smaller and larger internal wiring jobs, as everything needed is supplied with the box and there is no need to use a screwdriver to securely join wires or mount the box itself.

Debox SM40
Is the first 4-pole in-line junction box that fits through a 40mm aperture, yet still retains generous cable management space, making Debox SM40 ideal for use in LED lighting applications. As with all Debox junction boxes, Debox SM40 comes ready for use, supplied with everything needed, including the terminal block, making connection simpler and easier. The miniature Debox SM40 is only half the volume of Debox S or SL, making it the most compact 4-pole junction box available.

Debox 11
Is a highly versatile surface-mounted junction box for external weatherproof applications. It comes with 10 soft membrane covered cable entries, providing quick puncture-entry and self-sealing rated to IP66. Eight entries are threaded M20, ideal for cable glands, with no need for an internal locknut, offering even higher protection rating to IP67. Five 3-pole screwless connectors are supplied and the housing is made of flame retardant, impact-resistant polypropylene.

Ergonomic design and convenience for electrical installers are at the heart of the entire Debox range. The design of all models aims to simplify and speed up installation, without compromising quality. All components required are supplied, with no loose screws or parts that can be easily dropped or lost, and installation is virtually tool-free.
