WST Series shielding terminals provide convenient grounding and interference immunity
for cables that require grounding shields

Wieland Electric Inc., a leading global manufacturer of innovative electrical interconnect technology, has developed a series of cable shield terminals designed to provide simple, reliable, cable grounding connections. Designed to accommodate cable diameters from 8mm to 32mm, the fasis WST terminals provide vibration-proof grounding of shielded cables.

Constructed from hardened steel with high corrosion resistance, these durable terminals are available in configurations for mounting on busbars, TS35 DIN rail, C-profile rails, or direct screw-mounting on flat surfaces. The fasis WST Series shielding terminals are ideal for industrial machinery and power equipment that requires grounded cable shields.

“The fasis WST Series shielding terminals deliver low-impedance, large area grounding connections for shielded cables, facilitating immunity from interference in industrial and process networks, for fault-free factory operations,” said Martin Lalonde, application engineer at Wieland Electric. “Their practical design makes the WST ideal for retrofit and new applications. The ease of operation ensures that consistent and reliable ground connections are made during initial factory installations, field maintenance and service work.”

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wieland Electric Inc., a leading global manufacturer of innovative electrical interconnect technology, has expanded its portfolio of revos rectangular connectors with the new revos IT Series split housing data cable feed-through connectors, which enable up to four pre-terminated data cables to be safely routed through a control cabinet or enclosure wall.

The revos IT Series data cable feed-through connectors accommodate cables with diameters spanning 4mm to 9mm, and are rated for IP65 environmental protection against dust and water ingress. In addition, the connector’s design incorporates a strain-relief feature to further enhance the robustness of the connection.

“More networked and automated machines on factory floors mean more specialized, pre-terminated cables, all of which need to be safely and conveniently routed through control cabinet or enclosure walls,” said Martin Lalonde, application engineer at Wieland Electric. “The revos IT Series’ split housing is ideally suited for passing preassembled cables - like encoder, data, and other unique cables - while maintaining the quality and signal integrity of the OEM cabling, and providing the convenience and robustness of industrial rectangular connectors.”

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

samos® PRO COMPACT, the Next Generation Safety Controller

Wieland Electric expanded its samos® and samos® PRO system with the release of the brand new samos® PRO COMPACT series. The new samos® PRO COMPACT modules offering up to 20 safe inputs and 8 safe outputs at a width of only 45 mm already in the base module. With integrated USB, Ethernet and Industrial Ethernet communication. Flexible programmable by the free programming tool samos® PLAN 5+ with integrated simulation and logic analysis.

Through its extensive functionality, the compact design and the user-friendly software, these modules can already cover many different safety applications optimally and cost-effectively. With no extra effort the new modules can be quickly integrated in Ethernet-based networks, so that solutions can be implemented for remote maintenance. If necessary, the new modules from the COMPACT-family can be extended up to 168 safe inputs / outputs. Therefore samos® PRO COMPACT is also perfectly suited for medium to large applications.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

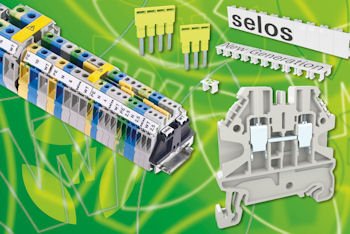

With selos New Generation, Wieland, the inventor of secure electrical connection technology, is launching an innovative version of the Wieland terminal block with screw connection on the market.

selos – Simple and Secure Connection
With its selos line, Wieland Electric has developed a series of rail terminal blocks that combines many user-friendly characteristics in a single product, giving the user decisive advantages in terms of flexibility, economy and reliability. The selos series of products combines the classic screw connection with modern connection technology, with the focus on customer benefits and increased efficiency when working. The essential features of selos include a secure and maintenance-free connection, optimized and time-saving handling as well as noticeably reduced costs for logistics.

Regardless of whether a single solid-conductor wire or multi-stranded wire is used and whether a wire end ferrule is present or not, selos provides a simple and secure electrical connection. Thanks to the large amount of terminal space, universal connection and easy expansion through use of multi-wire connections are possible at any time. At the same time, the proven Wieland screw connection technology guarantees a secure, maintenance-free and long-lasting connection. The special clamping element design with its single-lead thread ensures high quality and uniform connection even when rewiring and reconnecting. Its small size is an additional benefit of selos: a result of the uniform and optimized design as well as the considerably fewer number of accessories.

Plug & Play Even with DIN rail Screw Terminal Blocks
You save valuable time with selos during assembly and wiring thanks to the simple and screwless ground blocks as well as the plug-in connecting links and adapters.  All terminals blocks in the series feature a two-row, plug-in jumpering channel. This permits variable potential distribution through use of a chain arrangement, since any number of plug-in jumpers can be connected in succession as necessary. In addition, the use of standard variants permits cost savings for inventory.

Fully Compatible with Wieland Accessories
selos has been designed to mesh seamlessly with Wieland accessories, which share a uniform configuration and may be used throughout the line. The user has the choice of any Wieland connection technology – while being able to use time-tested accessories. The extremely rugged jumpering elements deserve special attention. The intelligent design guarantees a secure connection even when it is subjected to vibrations, allows easy adaptation to a variety of different applications and provides a reliable connection even under the harshest ambient conditions.

The Wieland Identification System Ensures a Clear Orientation
The Wieland identification system can be used to label all terminal locations. Unambiguous assignment of wire to terminal location when wiring is assured at all times and simplifies troubleshooting, even while wires are connected. The clear legibility and secure attachment of the identification tags provide a convincing solution.  The Wieland identification tags join the terminal blocks into solid unit on the mounting rail. The wiemarc identification system is available for customer-specific labels.  The identification tag holders – ideal for service and maintenance – guarantee individual labeling with only a few items without the use of complex labeling devices. Moreover, selos allows you to identify entire rows of terminal blocks in a single step through use of continuous strips.

A Wide Variety of Designs
selos is available as feed-through and ground blocks with two, three or four locations for each potential, as disconnect blocks as well as multitier blocks for different wiring tasks within a confined space. In addition, the selos product family includes function blocks with a wide variety of diode circuits, fuse blocks and diverse application- specific special terminals such as instrument transformer isolating terminals. selos has been designed for use in machinery and plant construction as well as installation in buildings.

selos Technical Data to EN 60947-7:
Design cross-section 2.5 to 240 mm²
Rated current of up to 415 A
Rated voltage of up to 1000 V

.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wieland Electric has released a new gesis electronic special catalogue which includes the entire gesis product range for building automation. Components and systems for decentralised room automation, based on KNX, LON, and EnOcean wireless technologies, are all included in this user friendly, 80 page guide.

As a leading system provider, Wieland offers devices for both intelligent detection and control of room functions and system devices, such as power supplies, interfaces, backbone couplers, and IP routers for the creation of entire networks. In addition, the swiftness of the installation of the gesis Electronic building automation components is their facilitated compatibility with the gesis CON plug & play wiring system which has some crucial safety features; for instance, mis-mating of different connectors is impossible. All the units are mechanically coded meaning that only the matching male and female connectors can be plugged together in the correct pole configuration. They are also colour-coded to speed up matching. Wieland has over 5,000 different individual components in its gesis BIT (Building Installation Technology) range – all based on the concept of pluggable connection.

A short overview of the product lines of the comprehensive gesis electrical installation system illustrates the advantages of decentralised, installation via plug & play. Simple specifications, technical data, practical examples, and application references are all featured in this wide-ranging catalogue. Whether it is an office, hotel, commercial building, lighting, heating or engineering project, gesis provides flexibility with the advantages of a future-orientated system.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wieland Electric has just launched an addition to its revos FLEX modular hybrid connector system, the RJ45 module.  Revos is a range of industrial multi-pole connectors.  It is also possible to transmit optical signals and connect compressed air hoses – all within a die-cast aluminum housing design.  The RJ45 module comes fully pre-assembled and is able to connect Ethernet cables.

The RJ45’s outer connections are implemented with standard female connectors and the inner section contains two USB connectors of type B, this ensures that improper contact between the internal connectors is avoided.  Revos FLEX has the option of four different frame sizes with two, three, five or seven module slots which can be inserted into the standard aluminum  die-cast housing of revos BASIC in size six through 48.

The module also has 28 different inserts for currents ranging from 1A to 82A and voltages up to 5.5kV which ensures the system can be used in a variety of applications.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Wieland Electric has completed its selos DIN rail terminal block range with the addition of the WKN 6 TK instrument isolating terminal, a screw-type terminal specially designed for use in secondary circuits of measuring transformers.

It short-circuits the current transformer for safe disconnection or separation of measuring devices, which prevents both overheating and generation of high voltages in the secondary winding.
