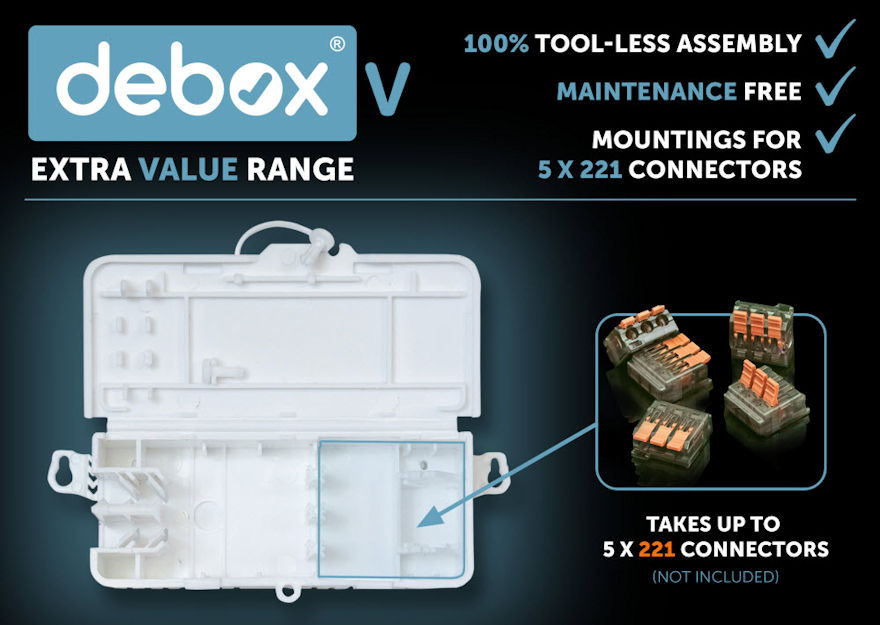

Debox V offers extra-value option, while maintaining time saving & easy installation - but is supplied without connectors, for electricians who prefer to use their own
Debox V, a extra-value variant, to its popular and innovative Debox cable junction box series. Hylec’s Debox junction box range is well known among electrical installers for being supplied complete-for-use, making connections quicker and easier, saving them time and money. However, Hylec research has shown that many electricians routinely carry boxes of standard connectors, which they often prefer to use.
The Debox V offers the same time-saving features and ease-of-installation as other Debox junction boxes – but is supplied without connectors, providing an extra-value option for electricians who carry and prefer to use their own connectors. Debox V also provides a secure way to house ready-terminated connectors within a quick-to-install enclosure, using the electrician’s preferred lever connectors.
Features & Advantages

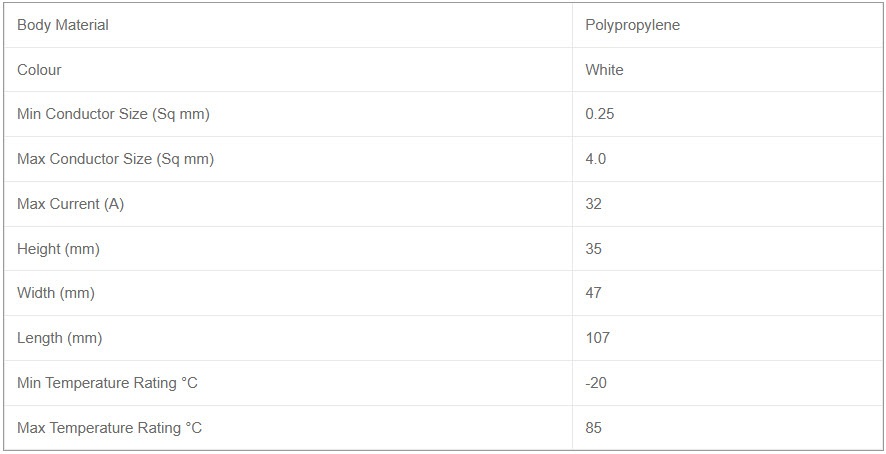

Specifications
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
New easy-actuation terminal blocks added to Hylec’s Debox SL® in-line junction box make wiring interior projects even faster
Hylec-APL, the specialist manufacturer and supplier of electrical and electronic components, announces it has launched a revamped model of its popular Debox SL junction box featuring redesigned terminal blocks. Debox SL was the first-ever completely tool-less in-line electrical junction box that has sold millions of units since its original launch seven years ago.
The new Debox SL models have green twin-lever actuators on the 4-pole 16 Amp terminal block which are labelled N (neutral) E (earth) 1 and 2. The actuators are easier to see against the white interior of the Debox SL, facilitating placement of wires, and they are also easier to actuate, requiring only a quick, fingertip push to open and close to secure the wires quickly. The terminal blocks are UL/VDE compliant as in previous models and can accommodate two, three or four conductors in round or flat profile cable between 0.5mm and 2.5mm diameter. Wiring up for LED lighting, ring main projects or power applications is fast and convenient: wires are simply pushed into the terminal block, the green levers actuated and the cables clamped securely with the push-fit cable clamps at each side. The cable clamps comply fully with the EN60670-22 Pull Test. The Debox SL can then be locked closed with the included locking clip and secured to external structures if required with the pop-out mounting ears in the lid. There is also a spare locking clip included, enabling the Debox SL to be re-closed should it be opened at some subsequent date.
Ergonomic design and convenience for the electrical professional are at the heart of the design of the Debox range: all components are supplied with Debox SL and there are no loose components that can be dropped or lost.
Manufactured in flame-retardant UL 94 V0 polypropylene and conformant to EN60598-1 (Glow wire test 650°C), Debox SL is 100% maintenance free.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Debox 11 IP66/IP67-Rated Surface-Mounted Electrical Junction Box for Exterior and Interior Projects: Features 8 x M20 threaded membrane entry points; 2x additional base entry points; five x 3-lever screwless connectors included.
Hylec-APL, the specialist manufacturer and supplier of electrical and electronic components, announces the launch of Debox 11, a versatile and robust IP66/IP67-rated surface-mounted junction box with a total of ten cable entries and five 3–way lever connectors. Specifically designed for interior or exterior use on projects such as exterior lighting, outbuildings and anywhere exposed to water or dust ingress such as industrial environments, Debox 11 is the latest junction box to join Hylec’s innovative and highly-successful multi-million unit selling Debox family. Like the rest of the Debox junction box family, Debox 11 saves electrical professionals installation time with its thoughtful, ergonomic design.
Debox 11 features ten cable entry points – two on each side and a further two in the base of the box. All have soft membrane covers, giving a quick puncture-entry self-sealing system rated to IP66. The eight side-entry points also have a M20 size threaded entry for cable glands, with no requirement for an internal locknut, giving a higher protection rating of IP67.
Wires are easily and quickly connected into the five x 3-lever screwless connectors which are supplied with Debox 11. Minimum cable diameter is 3mm, maximum 12mm. Voltage maximum is 400V, 32A. Internally the five connectors are held securely by moulded mountings. Also should the application require a PCB, Debox 11 has four PCB fixing posts in the base to take a PCB mounting plate. After inserting the wires, the Debox 11 lid is securely fastened with two included captive lid screws.
For secure external fixing, Debox 11 offers two alternative convenient mounting methods: for internal fixing, there are four screw fixing points in the corners (which do not pierce the housing and therefore do not compromise the IP rating); or for external fixing, there are two unique fixing lugs located on the sides, which preclude the need for external mounting fixtures.
The robust Debox 11 housing is manufactured from black, RAL9003 flame-retardant, impact-resistant polypropylene and is rated for use in temperatures ranging from -30degC to +100degC. Dimensions are 85mm wide x 85mm deep x 53mm high.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Vast range of High-Quality Control Stations, Motor Control Gear, Terminal Blocks, Weatherproof Connectors, Specialist enclosures for Industrial Applications
Hylec offers an extensive range of lockable door enclosures in ABS flame-retardant plastic, stainless steel, galvanised steel and aluminium. Models are rated IP65, IP66, IP67, IP68, IK08 and IK10 and the steel range comes with a 3-year corrosion warranty. Providing protection for many installations in industrial environments including those exposed to hazards including dust, water jets, spray chemicals, petrochemicals, the enclosures are all available in a very wide range of sizes and are supplied complete with back plates and mounting brackets.
There is probably no other UK manufacturer with a wider cable gland range than Hylec. Over 2,000 products in multiple materials including nylon, nickel-plated brass and stainless steel - all in metric and PG sizes - are complemented by a wide range of accessories of all types. Perfect Series cable glands include railway-certified Pa6 V-0 and ATEX-certified explosion-proof ranges. Best-selling Kwik Fix cable glands provide a rapid, secure and watertight connection into enclosures and panels: one turn of the polyamide body gives an IP68-rated connection. No special tools are needed, assembly is from one side only with no separate lock nut required.
The Weatherproof range of electrical connectors are rated up to IP68/IP69K and have an outstanding track record in multiple projects worldwide, include major bridge illuminations, public fountain installations, signage at outside sporting events and sluice gate controls on major rivers. Impact resistant (IK08/IK10), vibration resistant, saline-and-flame resistant, the Weatherproof connector family includes micro and other connectors in 2 to 8 pole versions. Weatherproof connectors can be panel mounted to products, which can simplify and speed up installation.
Completely new is the Debox 11, the latest member of Hylec’s innovative Debox junction box family. For interior or exterior use, Debox 11 is a versatile and robust IP66/IP67-rated surface-mounted junction box with ten cable entries and includes five 3 way lever connectors. This is the latest junction box to join the innovative and highly-successful multi-million unit selling Debox family, all designed for ergonomic, time-saving installation.
When it comes to choosing the right terminal block for your application, there are literally hundreds of different options to choose from.
Control stations are vital in industrial settings. Hylec’s range covers four functional areas: emergency stop stations; dual-push on-off buttons in one housing; selector switches in on/off twistable and a key lockable version; flush button stations in separate or combined on/off control or forward/reverse. All Hylec control stations are housed in high impact-resistant, flame-retardant ABS. Various accessories and customised products are also offered. Hylec’s range of motor control gear products includes motor starters, DEC Series 3 pole contactors (AC3), DETH Series thermal overload relays and DECA Series auxiliary contact and mechanical interlock modules. The enclosed, non-reversing DOL motor starters are IP65 rated and CE approved, supplied with wall/panel mounting screws and complete with threaded cable gland entry. They are wired ready for use with a thermal overload relay and suit applications including woodworking, dust-collecting and metal recycling machinery.
Ensuring safety in industrial environments by providing fast electrical isolation for machinery, power supplies, security equipment and HVAC installations, Hylec’s range of IP66-rated AC and DC rotary Isolator control switches have the best price/performance ratio currently available on the UK market.
