The M-Series Buccaneer range has been designed to offer flexible connectivity solutions for a variety of industrial automation applications. With metal and plastic variants, these rugged and robust interconnects are ideal for industries requiring secure and reliable connections.

The Bulgin M-Series and Push-Pull Connectors range are the ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. The M-series circular connectors offer the industry standard M5, M8, M12 (including X-Code), M16 & M23 threads in addition to panel mount receptacles, overmolded cable variants and power/signal distribution units.

Suitable for industry applications including factory automation, robotics, manufacturing, process control, medical, food & beverage processing, and industrial network. The Bulgin Push-Pull Connectors includes X-series and Y-series are suitable for high-reliability and high-quality applications in medical, instrumentation, military, and communications, where a fast method to connect / disconnect is required. They are manufactured to prevent accidental disconnects with a simple but fast strong-locking mechanism.

Overview:

• Available types: M5, M8, M12, M16 & M23
• Reliable sensor, actuator and data connectivity solutions
• Straight and right angled configurations
• Quick and secure screw coupling mechanism
• Backwards compatible versions
• Available as field attachable connectors, receptacles or with overmolded cables
• Plastic and Metal Variants
• Ratings from 1A, 30V ac/dc up to 8A, 250V ac/dc
• Overmolded cables PVC & PUR
• IP67 Rating
• Cable lengths from 1m - 15m
• A, B and D Coding Options

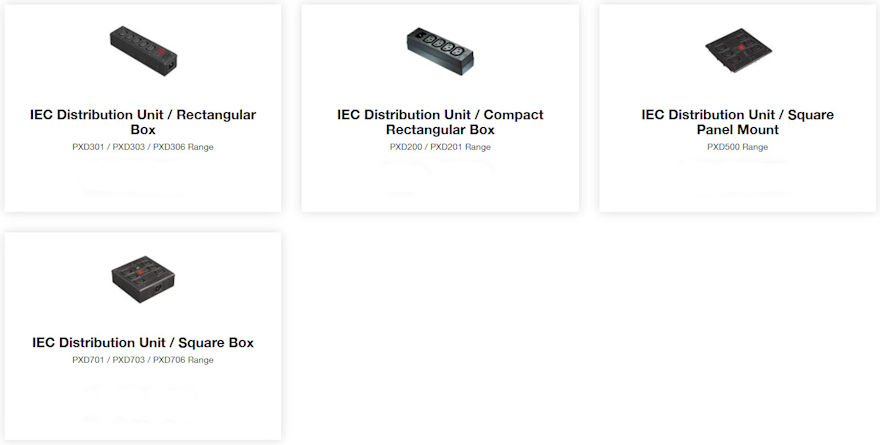

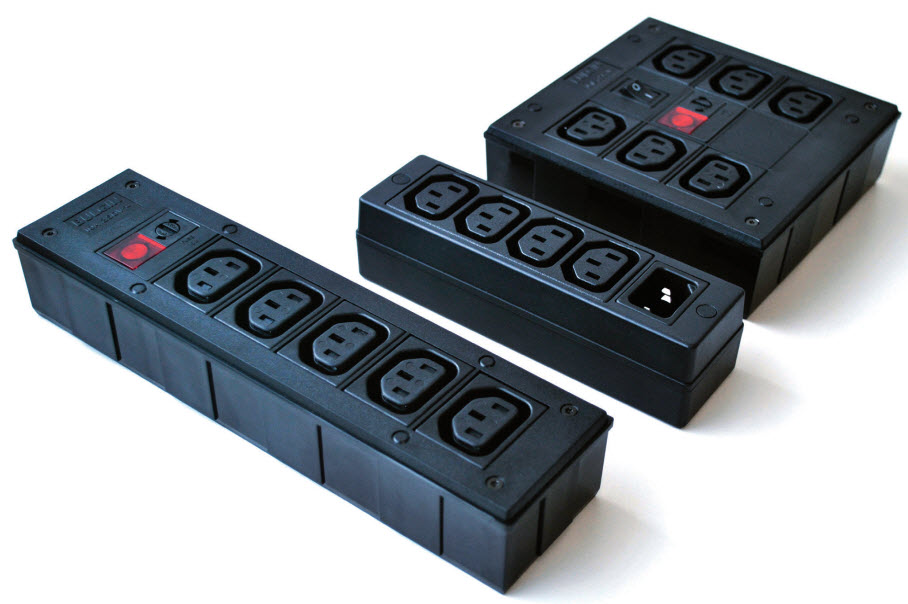

• Power Distribution Units Available

Applications:

• Factory Automation
• Robotics
• Measurement & Instrumentation
• Manufacturing & Machine Tools
• Process Control Systems
• Medical
• Food & Beverage Processing
• Industrial Network

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Modular Solid State Relays (SSR) 5 - 15 - 30A

Function and Features:
The 77 Series is made up of modular and “hocky puck” style solid state relays with the following features (according to Type):

'

Modular

• Input AC or DC
• 230 V AC or 400 V AC output
• Rated voltage range (19…305) V AC or (48…480) V AC
• Zero-crossing and random switch-on versions
• Suitable for lamp loads
• 17.5 and 22.5 mm housing

Hocky Puck

• Input AC or DC
• 230 V AC or 400 V AC output
• Switching voltage range (19…305) V AC or (48…480) V AC
• Suggested applications: heater control
• Mounting to heatsink with screws
• Zero-crossing version

Applications:

• Drying Kilns
• Heating & Cooling
• Lighting Controls in Corridors (for hotels, offices & hospitals)
• Bottling Plant
• Labelling Machines
• Packaging Machines

FACT SHEET

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The FAZ6 miniature circuit breaker is a protective device equipped with both a thermal and an electromagnetic release that is available in 1-, 2-, 3-, 4-, 1+N and 3+N pole versions.

The FAZ6 is available with rated currents of 0.5 A to 63 A. The switching capacity is 10 kA according to IEC/EN 60947-2 and 6 kA according to IEC/EN 60898-1. A guide for secure terminal connection and a 3-position DIN-rail simplify the installation of the circuit breaker.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Typical Applications

Ideally suited to protect against overcurrent and short circuit of equipment in telecommunications, process control and other industrial applications where sophisticated equipment requires a high precision performance.

Technology

A latching type bimetal is combined with a magnetic coil to ensure protection and genuine physical contact isolation. This provides the joint benefits of delayed operation for low level overcurrent protection and fast magnetic action of higher value short circuits, disconnecting the faulty circuit within milliseconds.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Revos MODULAR is the connector for distributing power, signals and data for industrial applications.

Revos MODULAR combines various transmission media in just one connector. Signal, supply, bus and fiber optic cables can be combined to achieve a number of functions in a small amount of space. The connector system, which can be configured as a hybrid and used in modular fashion, is suitable for use in even harsh industrial environments.

• Hybrid configuration: Various functionalities achieved in just
  one connector by combining supply, bus and fiber optic cables

• Pre-wired, individual frame sizes and sub-modules with varying voltage conduction, number of poles and connection technology
• Modules easily interchanged without any damage to the assembly
• Robust powder-coated aluminum die-cast housing for high protection up to IP 65
• Certified to CE and UL

Individual Wiring and Tailored to Your Application:

• Modules for power supplies
• Modules for signal routing
• Modules for Ethernet and fiber optic multi-mode solutions
• Module frames

Advantages:

• Space saved by combining applications in one male connector
• Fault-free, quicker installation
• Fast, individual configuration and pre-wiring
• Compatible with the market standard
• Simple mounting and repair
• Reduced cabling effort
• Can be used in especially harsh environments
• Suitable for exporting companies

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Plugging Aid and Protection Cover for all OGN Fuse Holders

• Easy placing and replacing of 5x20 fuses
• Approved as a cover in operation
• Glow wire tested
• 1:1 replacement of current plugging aid

For the Schurter OGN fuse holder, which is available in THT, SMT and THR technology, Schurter offers a variety of different covers in addition to a dedicated plugging aid. Schurter launches the OGN Adapter for easy mounting and removal of fuses and at the same time serves as a cover for the OGN fuse holders.

The currently available OGN plugging aid is a very useful tool for placing 5x20 fuses into all types of OGN fuse holder. It makes placing and replacing of fuses much easier, especially on densely packed PCBs.

It is often the case that the plugging aid remains in place together with the fuse, which means that the plugging aid also remains in the appliance during operation. However, this is not permitted for safety reasons. With a rated power consumption of 2.5W/10 A, the plugging aid is endangered to overheat. Schurter is now taking this into account with the launch of the new OGN Adapter. At 4W/16A, it is significantly more heat-resistant and has also been tested for glow-wire resistance. It can therefore remain in the device during operation with a clear conscience (VDE approval) and serve as a cover.

The new OGN Adapter can therefore replace two products at once: the cover and the plugging aid. The OGN Adapter is going to replace the existing OGN plugging aids. They are not recommended anymore for new designs and will fall out of the product range soon.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Debox V offers extra-value option, while maintaining time saving & easy installation - but is supplied without connectors, for electricians who prefer to use their own

Debox V, a extra-value variant, to its popular and innovative Debox cable junction box series. Hylec’s Debox junction box range is well known among electrical installers for being supplied complete-for-use, making connections quicker and easier, saving them time and money. However, Hylec research has shown that many electricians routinely carry boxes of standard connectors, which they often prefer to use.

The Debox V offers the same time-saving features and ease-of-installation as other Debox junction boxes – but is supplied without connectors, providing an extra-value option for electricians who carry and prefer to use their own connectors. Debox V also provides a secure way to house ready-terminated connectors within a quick-to-install enclosure, using the electrician’s preferred lever connectors.

Features & Advantages

• Saves Time & Money
• Screwless connections – no fiddly screws to lose in poorly lit installation situations
• Maintenance Free - 100% Tool-less Box and Assembly.
• Smallest Junction Box for Five x 3-Way connectors
• Passes pull test EN 60670-22 and cable retention test EN 60670-1-7.41
• EN60598-1 (Glow Wire Test 650°C)
• Flame Retardant Housing to UL 94 V-0
• Complete with 2 Locking Clips (one spare)
• Fold-out External Fixing Lugs
• Unique built in double Cable Strain Relief
• Registered design: 002553735-0001

Specifications

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

Type 12.B2 annual Astro time switch with Bluetooth with annual function, for scheduling over specified periods or specific days of the year. Ideal for schools, small automations, public lighting and advertising.

Synchronizable via wireless GPS antenna (Type 012. BG.8.230) and expandable via Bluetooth inputs and outputs (Type 13.21-B and Type 1Y.P2).

Function & Features:

• Different programming methods:
  – “Smart” programming via Smartphone – Android and Apple – with Bluetooth and NFC technology
  – “Classic” joystick manual programming
• Annual programming with advanced functions
• Bluetooth 5 + NFC for app configuration and expandability
• 2 CO (DPST) 16 A outputs on board
• Supply voltage: 110…230 V AC/DC
• Outputs and inputs expandable via 1Y.P2 and 13.21-B
• Synchronization via external wireless GPS antenna (Type 012.BG.8.230)

Applications:

• Streetlights and car park lighting
• Shop display

FACT SHEET

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

The Finder 12 Series time switches allow quick, easy and precise programming of lights and devices, including from smartphones equipped with NFC technology.

Finder’s 12 Series is a range of daily, weekly and “Astro” time switches – utilising electromechanical or electronic technology and in either digital or analog format. Finder’s 12 Series ‘Astro’ time switches bring significant time and energy savings right from the start.

Configuring the system via your smartphone is up to five times faster than doing it manually. The ASTRO system perfectly adapts to natural light and switches lights On and Off depending on the location and time of year.

Function & Features: (According to Type)

• 1 or 2 contacts
• 35 mm rail (EN 60715) mount
• Electromechanical
• Time Switches with 100h operating power reserve
• Electronic 12.5X/ 6X /8x /AX/B2
• NFC Programming via iOS or Android app
• Automatic Daylight Saving
• Type 12.A4 with analogue / PWM output for dimmer control
• Internal battery for programming without supply
• Replaceable battery

Applications:

• Shop Display
• Heating and Cooling
• Lighting for Parks
• Streetlights and Car Park Lighting
• School Bells

DATA SHEET

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

DRMS Series Hybrid Motor Starters

The DRMS Series Hybrid Motor Starters are intelligent and convenient solutions for controlling 3-phase asynchronous motors. These compact devices can provide up to 6 functions in the same unit: Forward/Reverse, Soft Start/Soft Stop, Motor Overload Protection, and Mains Isolating Relay.

Motor overload detection is based on a thermal load curve. The relays are de-energized when an overload condition is present, ensuring a long service life.

Features:

• 3-phase motors reversing up to 4 kW
• 2-phase soft start/stop
• Up to 4 dials for setting of starting torque, deceleration torque, soft start/stop, and rated motor current
• 4 LEDs for status indication
• alvanic separated 24 VDC inputs for forward and reverse control
• Reset button on front, with connection for external reset
• Relay indicator output for operation
• Hybrid relay combines benefits of electromechanical relay technology with non-wearing semiconductor technology
• High reliability by temperature monitoring of semiconductors
